Standard awning NGM 20

Our versatile option for large shaded areas

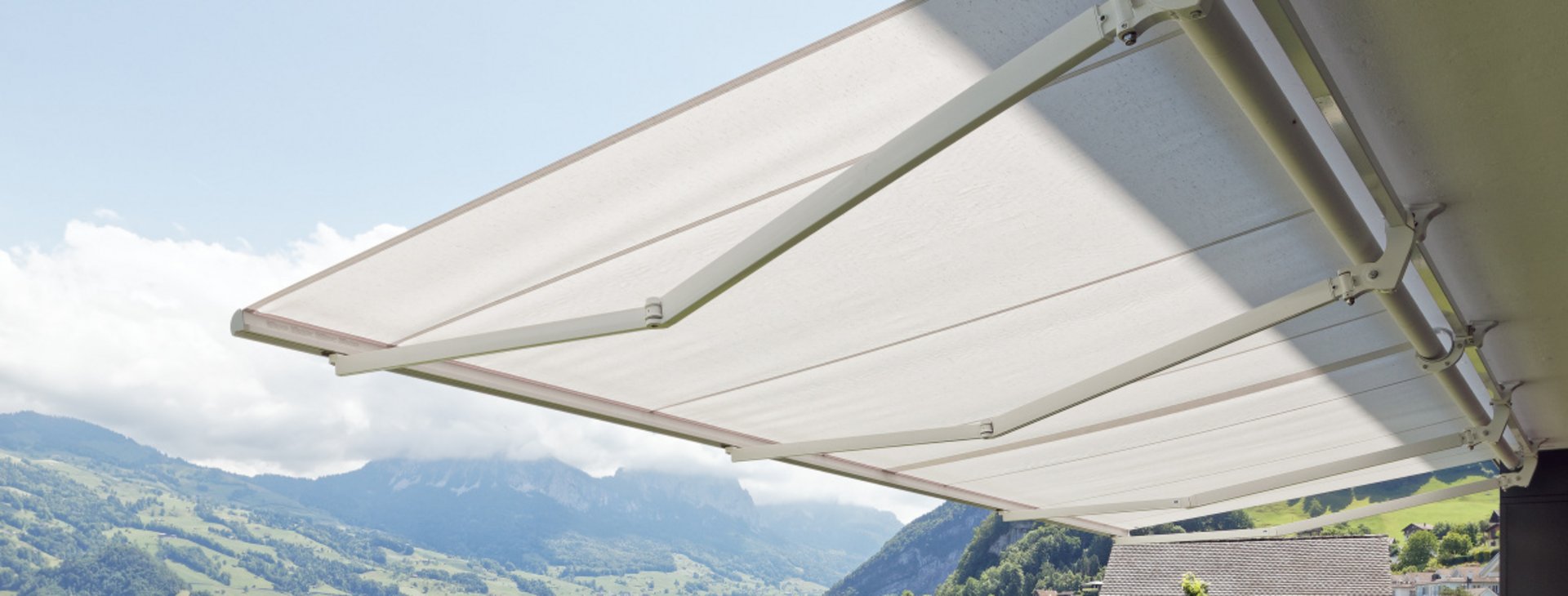

No terrace or building situation is too big or challenging for our NGM 20. Its impressive shading coverage of up to 80 m² makes it a reliable form of sun-shading and a rarity with these dimensions. The open standard awning is particularly suitable for use in single-family homes or apartment buildings, as well as commercial buildings and restaurants. Its distinguishing feature is the supporting tube, which facilitates a large coverage with maximum stability and optimal load distribution. The NGM 20 can furthermore be ideally adapted to suit individual needs with the addition of extensions, such as a valance that can be lowered or a matching canopy.

Generous sun blind for any building situation

Our supporting tube awning NGM 20 has variable fixing points, which make it ideal for mounting on the rafters as well as the wall and ceiling.

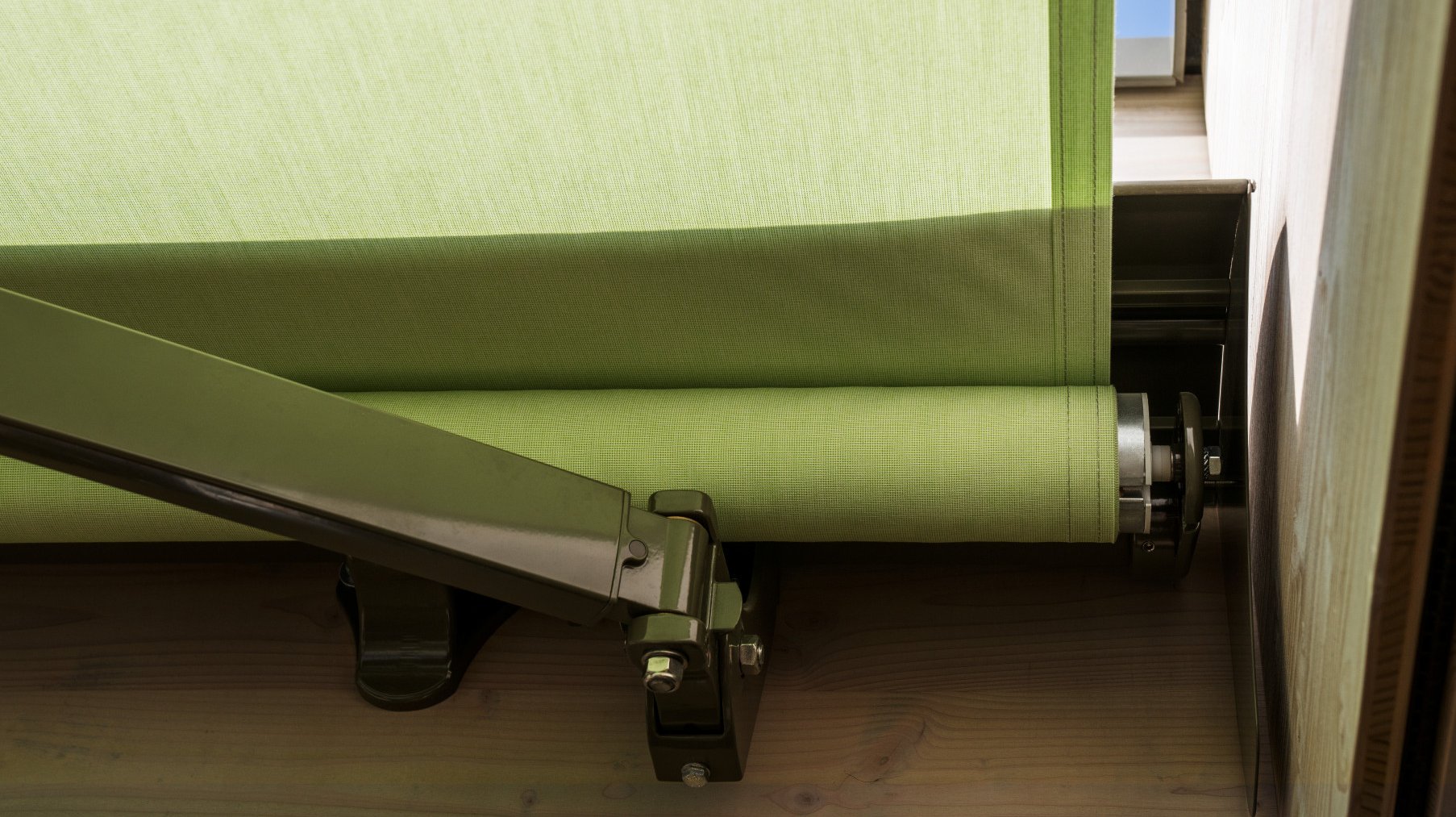

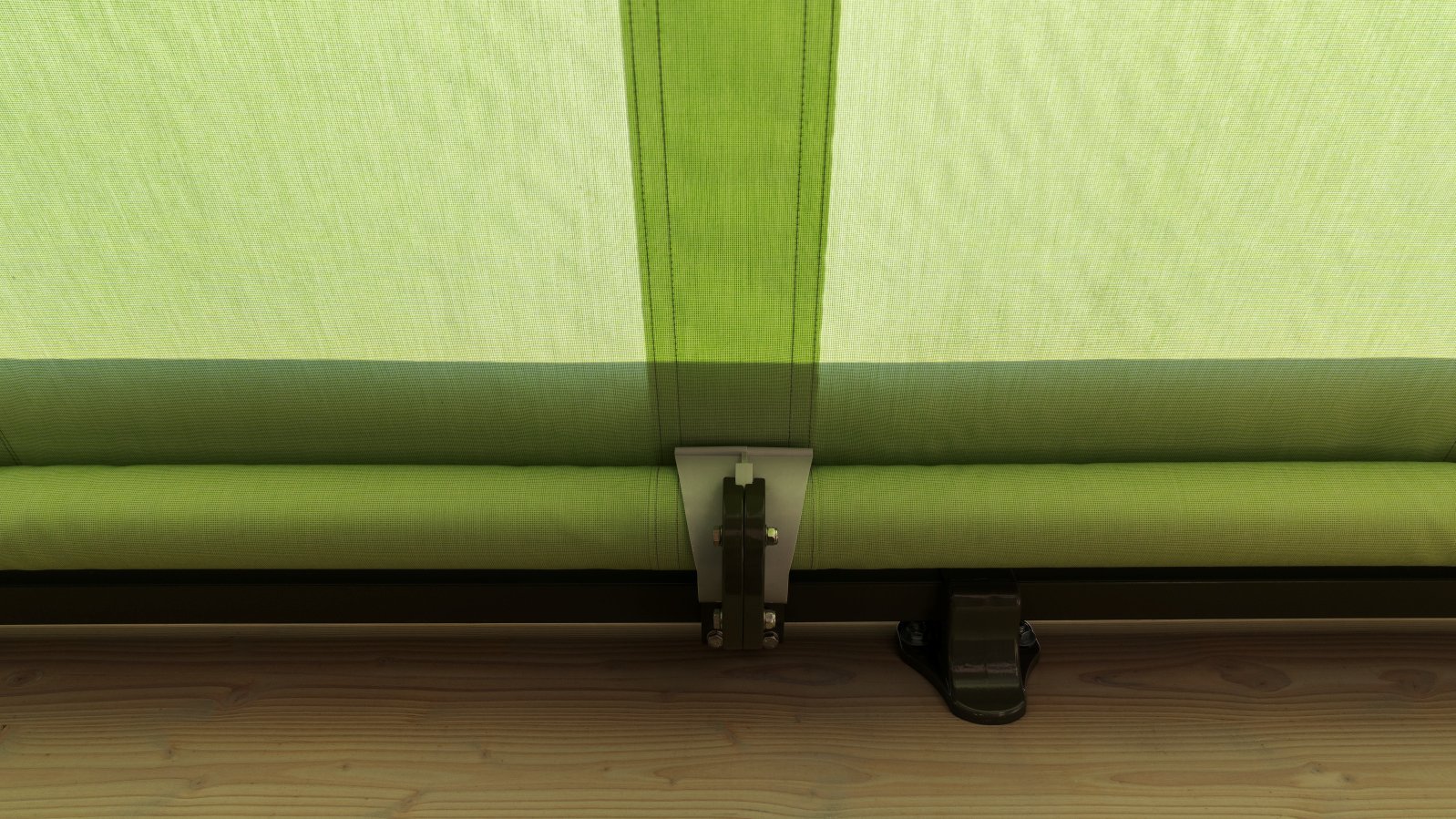

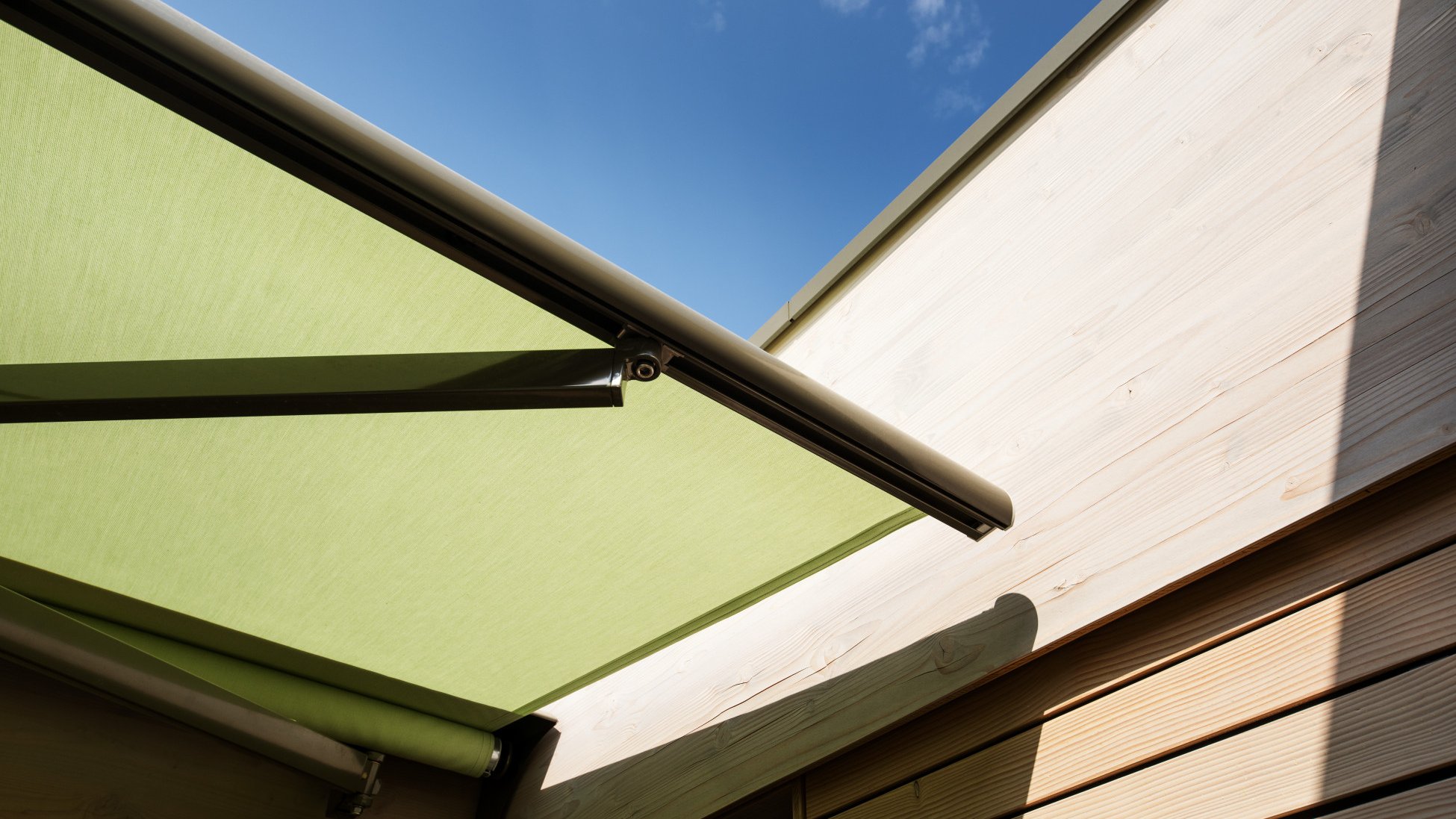

Two to eight sturdy, articulated arms made from extruded aluminium provide a maximum projection of up to four metres whilst always ensuring the greatest stability and fabric tensioning. The fabric rod, articulated arms and roller are technically coordinated, thereby ensuring the optimum winding of the fabric at all times. The supporting tube made from cast aluminium and the tensioning of the fabric are engineered in such a way as to ensure a very long service life. The flexible tilting mechanism can be set with great precision up to 60°. The open standard awning can be operated either via an electric drive or a detachable hand crank.

Width: 1750 mm – 20000 mm
Projection: 1500 mm – 4000 mm
Maximum area: 80 m2
Maximum wind speed: 38 km/h (Wind class 2)

Variations

Wall or ceiling mounting

Wall or ceiling mounting

The open standard awning is attached on a sturdy mounting bracket. The mounting bracket can be secured to the front-facing side (installation on wall) or tilted 90° so it can be secured upside down on the ceiling. The external dimensions of the standard awning vary depending on the type of installation.  When it is closed, the standard awning variant installed on the wall has a depth of approx. 285 mm and a height of 250 mm. With the variant mounted on the ceiling, the depth is approx. 320 mm and the height 270 mm. These dimensions are valid for models with motor drives.

Installation on rafters

Installation on rafters

The version installed on the rafters comes with a specially designed mount that is screwed onto the rafters. In this installation variant, the depth measures approx. 305 mm and the height 462 mm (incl. the rafter mount). These dimensions are valid for models with motor drives.

A whole range of options for even more comfort

There is a whole range of options on offer for the standard awning so it can best satisfy your needs and desires. Countless fabric designs and a wide selection of colours for the frames help you create a beautiful look for your terraces, balconies and garden seating areas. For even more comfort, our products can be controlled using our clever Smart Home solutions. With our wide selection of sensors for the sun, wind and rain, you can be assured of a safe operation in perfect synch with your product. Always with you: Swiss quality.

Product

/

Options

1. Fabrics

Live better with beautiful fabrics

In addition to protecting from glaring sunlight, prying eyes and keeping the heat in or out, fabrics also diffuse the lighting in the room and are an integral part of the interior design. Everyone is sure to find a shade they like in our richly assorted fabric collection. Multi-coloured, solid colours or striped – the possibilities are endless.

All of Schenker Storen’s carefully selected fabrics are tested brand textiles and have a long service life. For our standard awning, we offer 100% premium acrylic in different qualities and designs to suit various needs, such as UV-protection and reflection.

Explore our fabric collection and find the right fabric for your project.

Stoffe Textilscreens

2. Colours

Decoration and protection

Match the colour of the frame and all its profiles with your window, facade or furniture. At Schenker Storen there is an almost endless selection of colours to cater for the colour scheme of your choice. Thanks to our in-house powder-coating system, we produce weather-resistant, scratchproof and dirt-repellent products and can therefore guarantee long-lasting colour fastness.

3. Fixed or drop-down valance

If the sun is a little lower in the sky or you’d like to create a Mediterranean flair with your standard awning, the fixed valance is the perfect solution. The valance is attached directly to the front rail profile to keep out any unwanted glare or prying eyes.

The drop-down valance is integrated in the fabric rod and can be rolled in or out to the length you like using the crank.

The drop-down valance is available in a width of up to 6 m and a maximum height of 1.2 m. The projection of the arm extends up to 3 m.

If the sun is a little lower in the sky or you’d like to create a Mediterranean flair with your standard awning, the fixed valance is the perfect solution. The valance is attached directly to the front rail profile to keep out any unwanted glare or prying eyes.

The drop-down valance is integrated in the fabric rod and can be rolled in or out to the length you like using the crank.

The drop-down valance is available in a width of up to 6 m and a maximum height of 1.2 m. The projection of the arm extends up to 3 m.

If the sun is a little lower in the sky or you’d like to create a Mediterranean flair with your standard awning, the fixed valance is the perfect solution. The valance is attached directly to the front rail profile to keep out any unwanted glare or prying eyes.

The drop-down valance is integrated in the fabric rod and can be rolled in or out to the length you like using the crank.

The drop-down valance is available in a width of up to 6 m and a maximum height of 1.2 m. The projection of the arm extends up to 3 m.

If the sun is a little lower in the sky or you’d like to create a Mediterranean flair with your standard awning, the fixed valance is the perfect solution. The valance is attached directly to the front rail profile to keep out any unwanted glare or prying eyes.

The drop-down valance is integrated in the fabric rod and can be rolled in or out to the length you like using the crank.

The drop-down valance is available in a width of up to 6 m and a maximum height of 1.2 m. The projection of the arm extends up to 3 m.

If the sun is a little lower in the sky or you’d like to create a Mediterranean flair with your standard awning, the fixed valance is the perfect solution. The valance is attached directly to the front rail profile to keep out any unwanted glare or prying eyes.

The drop-down valance is integrated in the fabric rod and can be rolled in or out to the length you like using the crank.

The drop-down valance is available in a width of up to 6 m and a maximum height of 1.2 m. The projection of the arm extends up to 3 m.

If the sun is a little lower in the sky or you’d like to create a Mediterranean flair with your standard awning, the fixed valance is the perfect solution. The valance is attached directly to the front rail profile to keep out any unwanted glare or prying eyes.

The drop-down valance is integrated in the fabric rod and can be rolled in or out to the length you like using the crank.

The drop-down valance is available in a width of up to 6 m and a maximum height of 1.2 m. The projection of the arm extends up to 3 m.

If the sun is a little lower in the sky or you’d like to create a Mediterranean flair with your standard awning, the fixed valance is the perfect solution. The valance is attached directly to the front rail profile to keep out any unwanted glare or prying eyes.

The drop-down valance is integrated in the fabric rod and can be rolled in or out to the length you like using the crank.

The drop-down valance is available in a width of up to 6 m and a maximum height of 1.2 m. The projection of the arm extends up to 3 m.

4. Canopy

If the NGM 20 is to keep out the rain as well, an aluminium canopy can be ordered separately. This protects the awning fabric from direct exposure to the weather when it is retracted. The canopy is mounted directly onto the wall and can also be retrofitted. The canopy is powder-coated and fits in perfectly with the overall look of the awning.

5. Types of drive

Crank or smartphone?

Unsere Normmarkise lässt sich manuell per Handkurbel oder durch einen Motor verstellen. Ab 6 m Breite ist die NGM 20 nur mit Motor erhältlich. Auf Wunsch lässt sich die Markise auch über Funk ansteuern oder Sie können sie in ein Smart-Home-System einbinden lassen und mittels einer Zentralsteuerung auf Knopfdruck oder mit dem Smartphone bequem bedienen.

Lamellenstoren - Option Antriebsarten Wandschalter

6. Smart Home

At Schenker Storen you can find controller solutions for single-family homes or apartments right up to more intricate controller systems for large office buildings. Virtually all weather data can be recorded and analysed with our control devices. This means the system is able to respond in the best way to every situation.

Lamellenstoren - Option Smart Home 1

At Schenker Storen you can find controller solutions for single-family homes or apartments right up to more intricate controller systems for large office buildings. Virtually all weather data can be recorded and analysed with our control devices. This means the system is able to respond in the best way to every situation.

Lamellenstoren - Option Smart Home 2
