Cassette awning KGM 5 / KGM 6

The resistant lightweight

The cassette awning is our answer for the all-round protection of fabric and technology on terraces and balconies. The elliptical, timeless cassette completely protects the fabric from the effects of the rain, wind and dirt when it is closed. When extended, it really shows off the fabric and discreetly blends in with the look of the facade so effortlessly thanks to its two-point mounting. It is ideal for small to medium-sized terraces in single-family homes and apartment buildings – and the colour can be adapted to suit individual wishes.

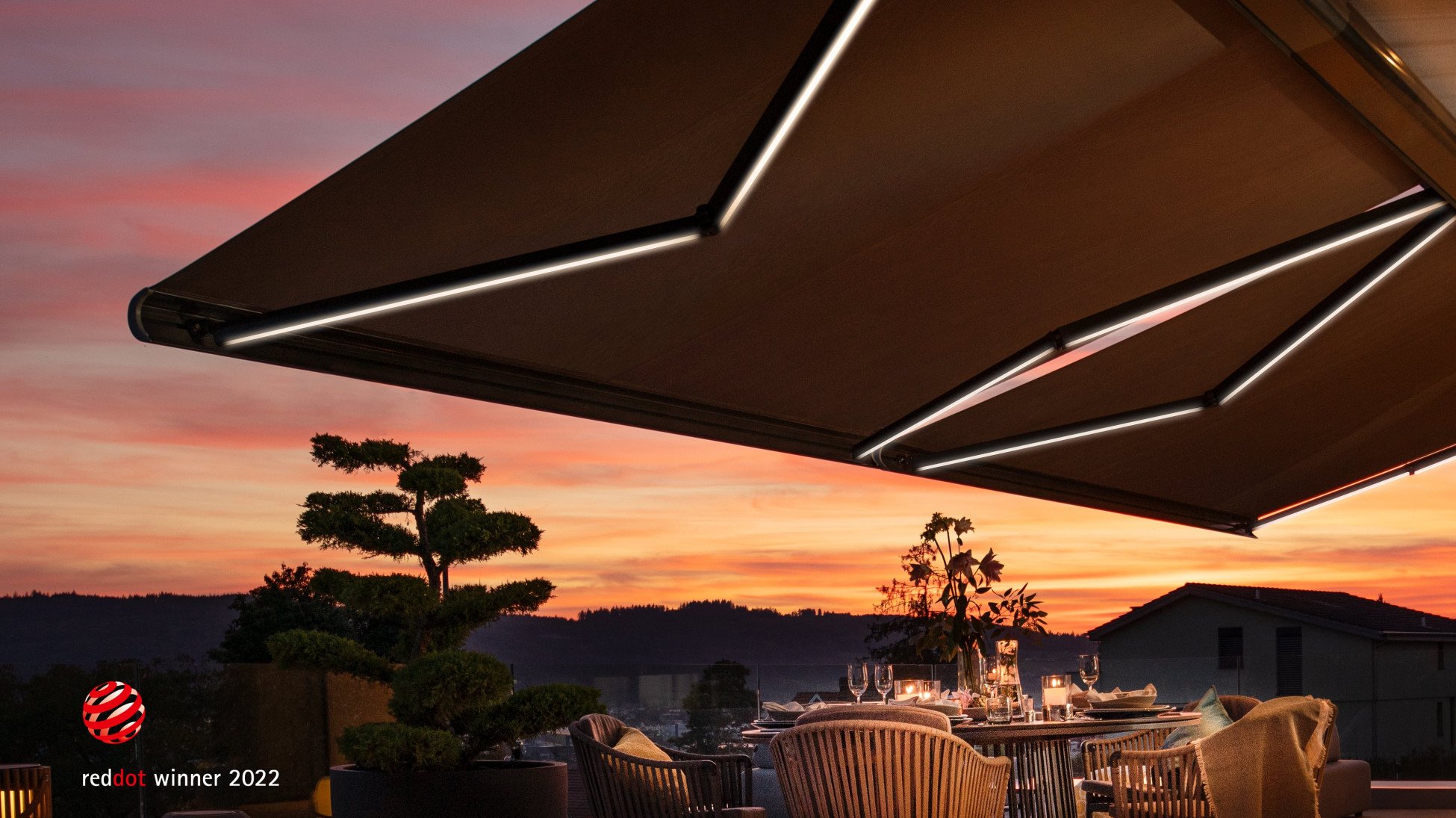

New generation with LEDs

KGM 6+, the latest cassette awning from Schenker Storen stands out with its innovative lighting feature and modern, soft design details. It was a winner at the Red Dot Design Awards 2022 in the Product Design category.

The streamlined sun blind with amazing all-round protection

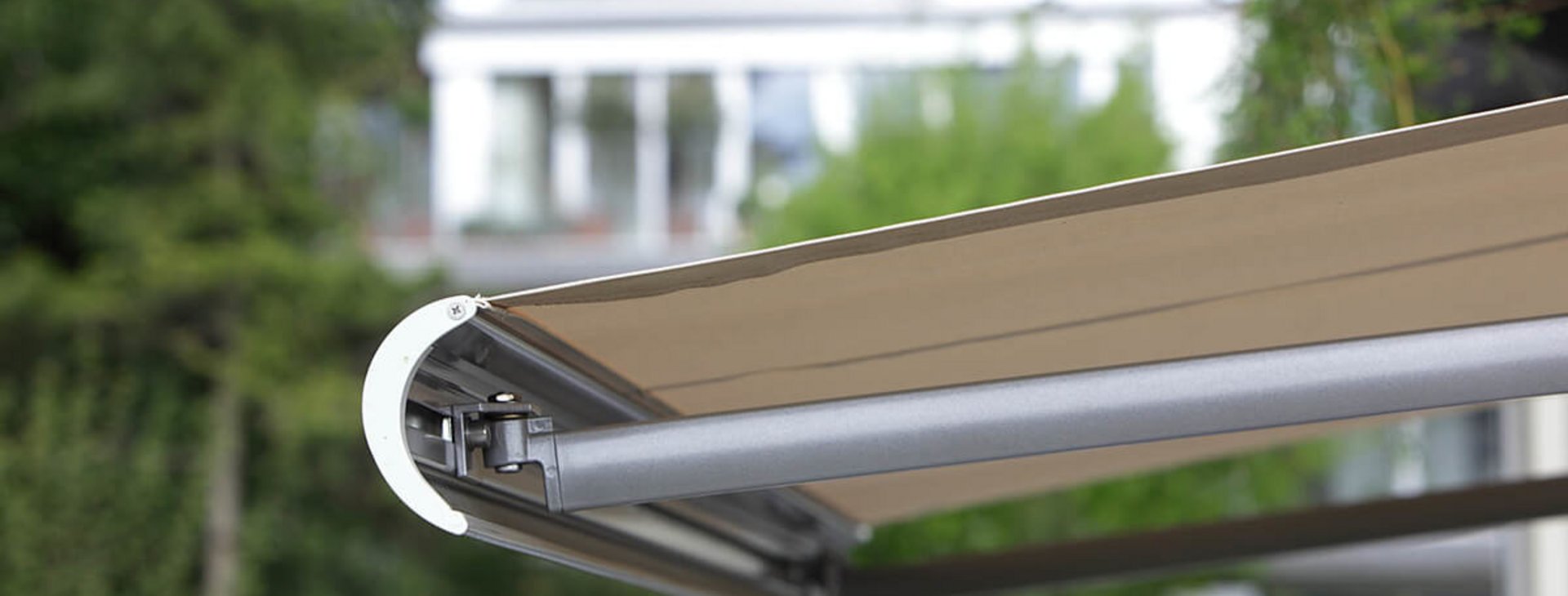

Our cassette awning is a self-supporting, completely enclosed aluminium cassette with different external dimensions. The sturdy articulated arms made from extruded aluminium support a projection of up to four metres and are technically coordinated with the roller, ensuring optimum fabric tension and winding at all times. Depending on the dimensions and substrate, the cassette awning comes with two differently sized mounting brackets for a secure installation. The colour of these cast aluminium brackets matches the rest of the cassette awning helping them blend discreetly into the background. The cassette, brackets and tensioned fabric made from premium acrylic are all engineered in such a way as to ensure a very long service life. The flexible tilting mechanism can be freely set with great precision up to 90° for ceiling mounting and up to 60° for wall installations. The cassette awning can be operated manually with a detachable hand crank made from galvanised steel, or via an electric drive.

Width: 1760 mm – 6000 mm
Projection: 1500 mm – 4000 mm
Maximum area: 24 m2
Maximum wind speed: 38 km/h (Wind class 2)

Variations

Width 6 m

Width 6 m

The KGM 6 is the model for larger terraces. With its maximum width of 6 m and a projection of up to 4 m, it creates an impressive shaded area of 24 m2. When closed, the cassette of the KGM 6 measures 15.6 cm in height and has a depth of 28.3 cm, incl. the bracket. These dimensions are valid for models with motor drives.

Kassettenmarkise

Width 5 m

Width 5 m

The cassette awning 5 is the KGM 6’s little sister and, with its maximum width of 5 m and projection of up to 2.5 m, provides a total shaded area of 12.5 m2. It looks exactly the same as the KGM 6, differing only in its slightly more discreet dimensions. The flat construction is very impressive when closed, measuring just 13.6 cm with a depth of 26.4 cm incl. the bracket. These dimensions are valid for models with motor drives.

Kassettenmarkise

Wall or ceiling mounting

Wall or ceiling mounting

The cassette awning is attached on sturdy mounting brackets. These can be secured to the front-facing side (installation on wall) or tilted 90° so it can be secured upside down on the ceiling.

A whole range of options for even more comfort

There is a whole range of options on offer for the cassette awning so it can best satisfy your needs and desires. Countless fabric designs and a wide selection of colours for the frames help you create a beautiful look for your terraces, balconies and garden seating areas. For even more comfort, our products can be controlled using our clever Smart Home solutions. With our wide selection of sensors for the sun, wind and rain, you can be assured of a safe operation in perfect synch with your product. Always with you: Swiss quality.

Product

/

Options

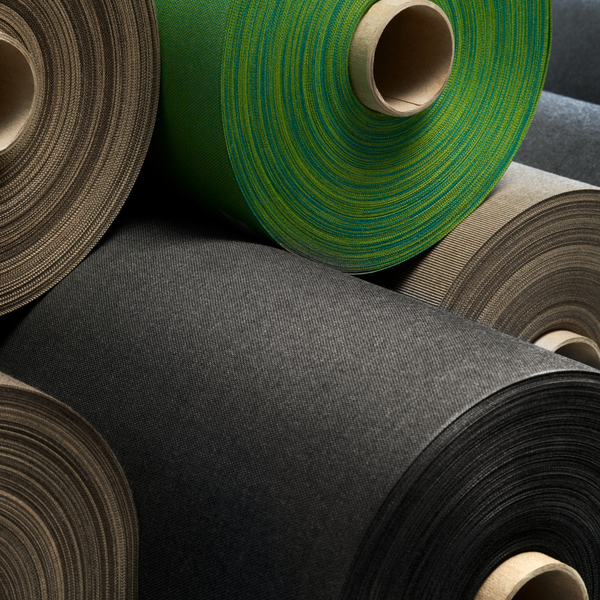

1. Fabrics

Live better with beautiful fabrics

The primary role of fabrics is a practical one: to provide sun, glare and sight protection. But they also create unique lighting in the room and form an integral part of the interior design. All of Schenker Storen’s carefully selected fabrics are tested brand textiles and have a long service life. For our cassette awning, we offer 100% premium acrylic in different qualities and designs to suit various needs, such as UV-protection and reflection.

Explore our fabric collection and find the right fabric for your project.

Stoffe Textilscreens

2. Colours

Decoration and protection

Match the colour of the frame and all its profiles with your window, facade or furniture. At Schenker Storen there is an almost endless selection of colours to cater for the colour scheme of your choice. Thanks to our in-house powder-coating system, we produce weather-resistant, scratchproof and dirt-repellent products and can therefore guarantee long-lasting colour fastness.

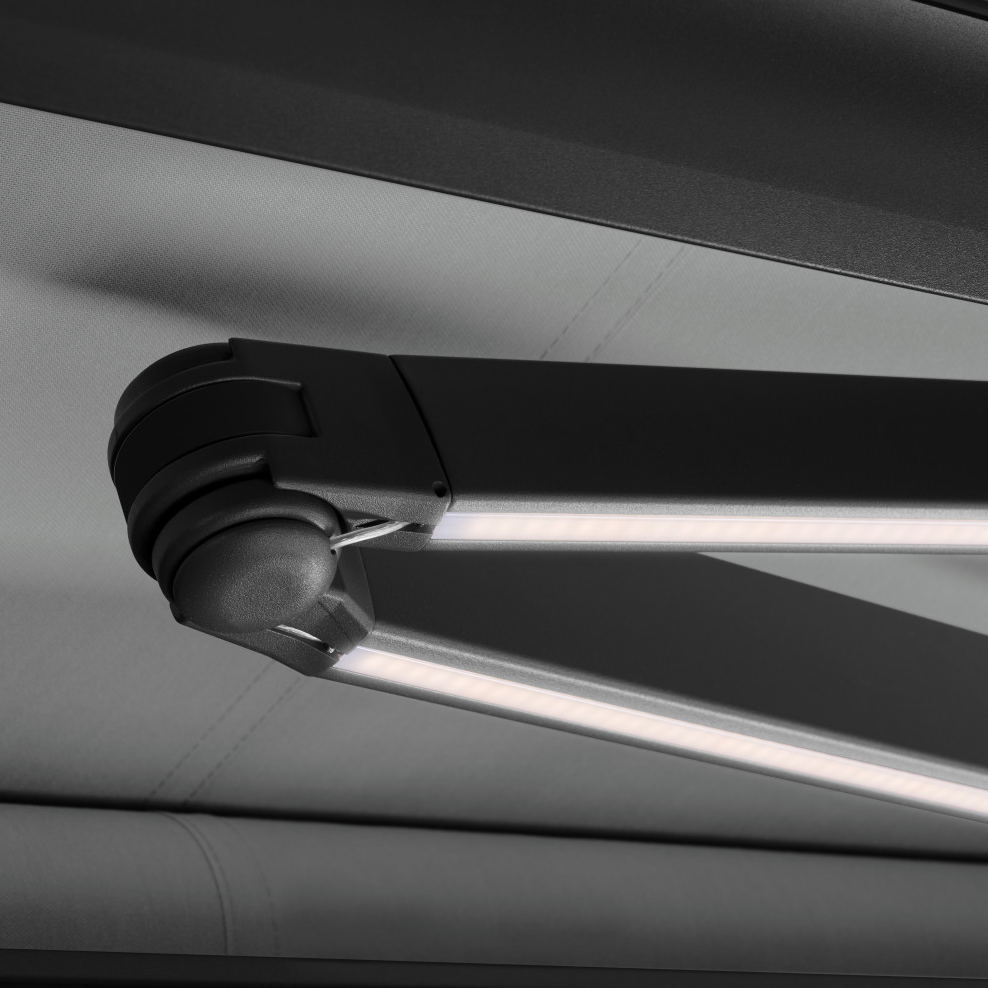

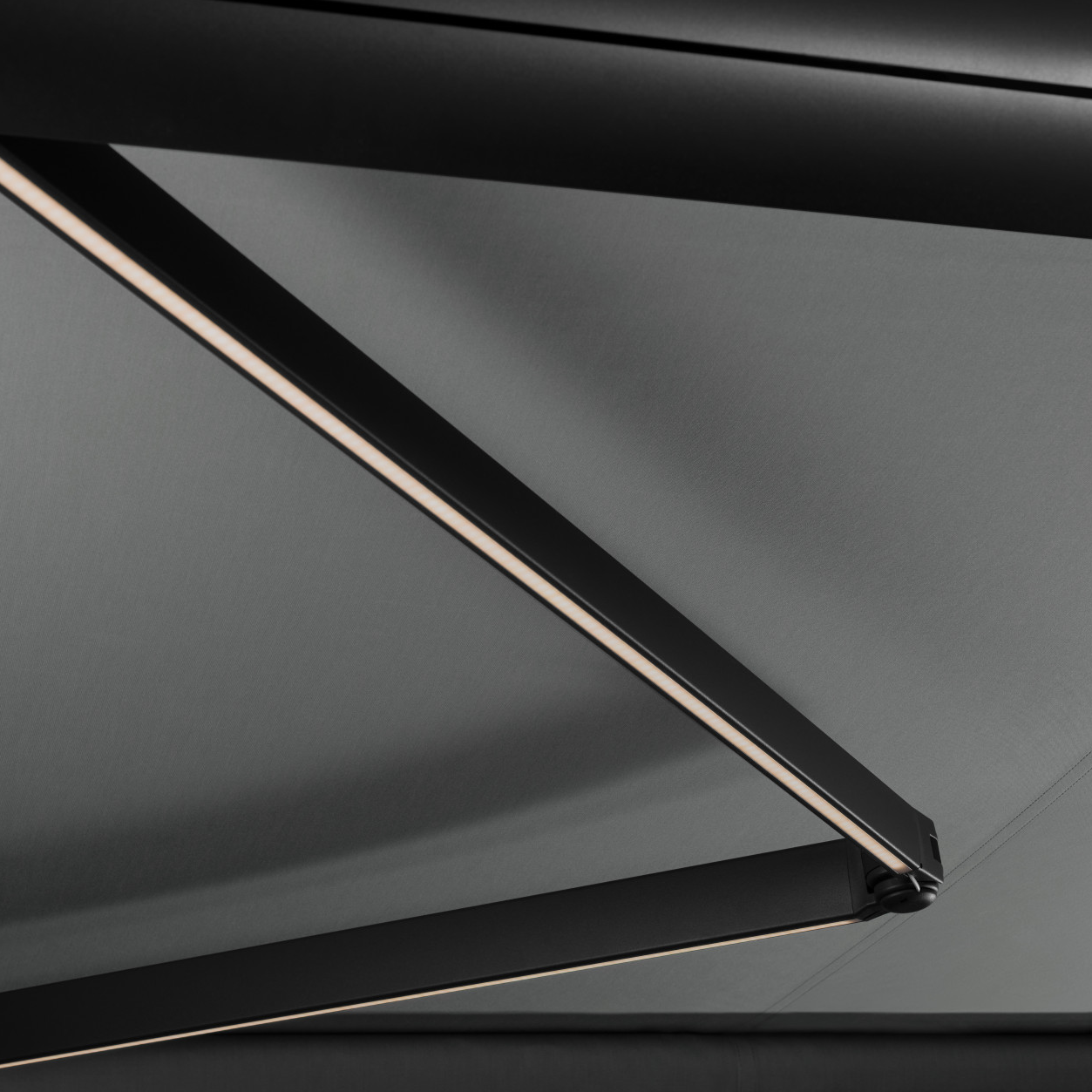

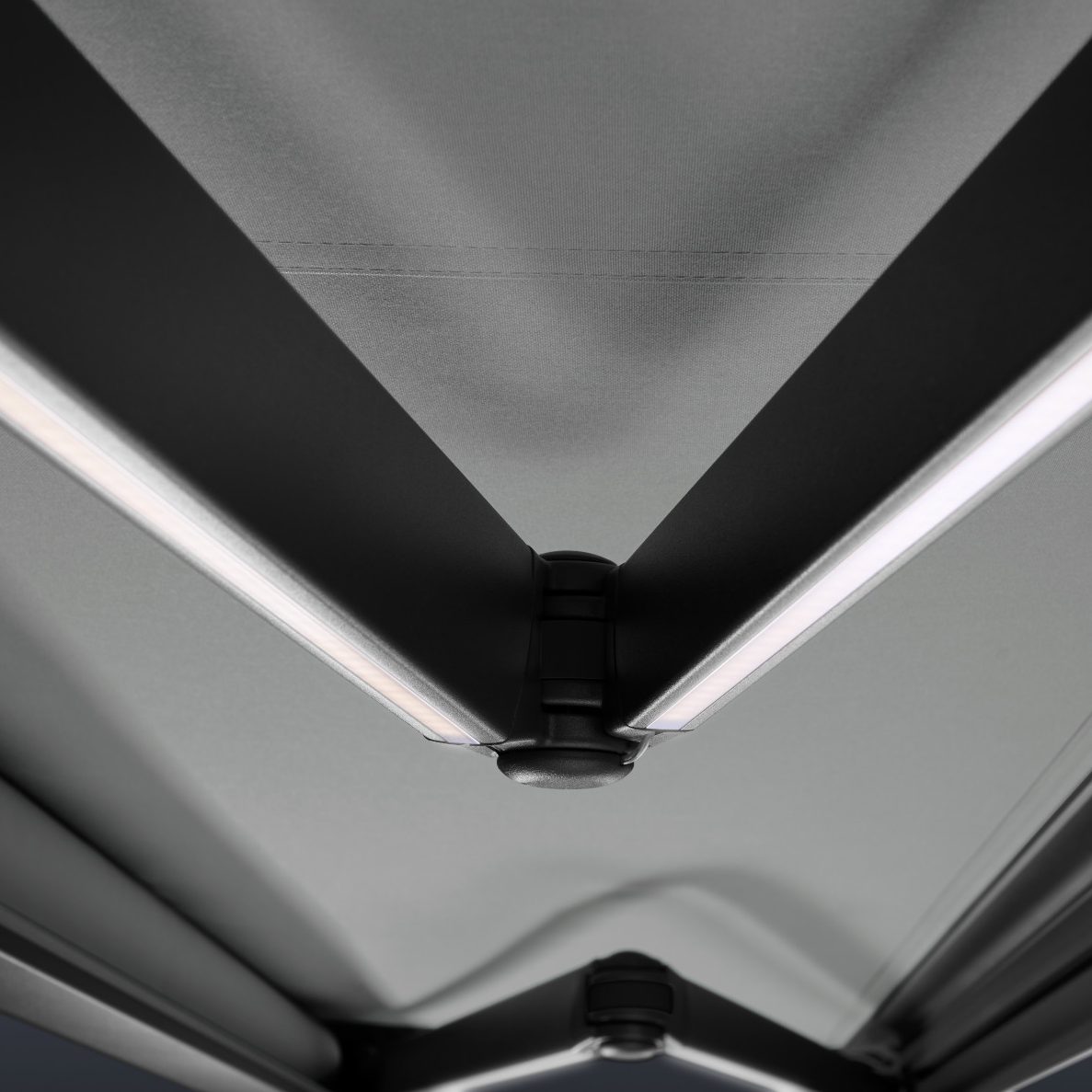

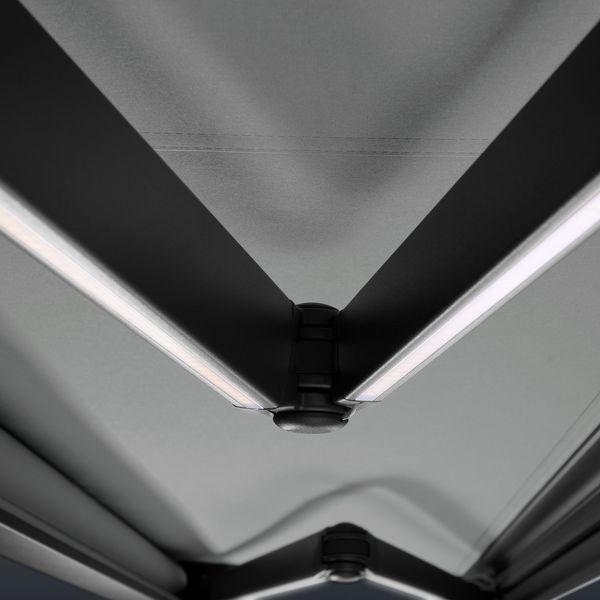

3. LEDs in the articulated arms

The LEDs are seamlessly integrated in the groove of the articulated arm. They cast a beautiful light under the entire awning canopy. With this solution, users can enjoy their outdoor area late into the night thanks to the clearly higher output of the LED bulbs (temperatura di colore warm white 3200 – 3400): The high-quality LEDs can be freely adjusted from a daylight to candlelight setting.

The LEDs are seamlessly integrated in the groove of the articulated arm. They cast a beautiful light under the entire awning canopy. With this solution, users can enjoy their outdoor area late into the night thanks to the clearly higher output of the LED bulbs (warm white 3200 – 3400 Kelvin): The high-quality LEDs can be freely adjusted from a daylight to candlelight setting.

The LEDs are seamlessly integrated in the groove of the articulated arm. They cast a beautiful light under the entire awning canopy. With this solution, users can enjoy their outdoor area late into the night thanks to the clearly higher output of the LED bulbs (warm white 3200 – 3400 Kelvin): The high-quality LEDs can be freely adjusted from a daylight to candlelight setting.

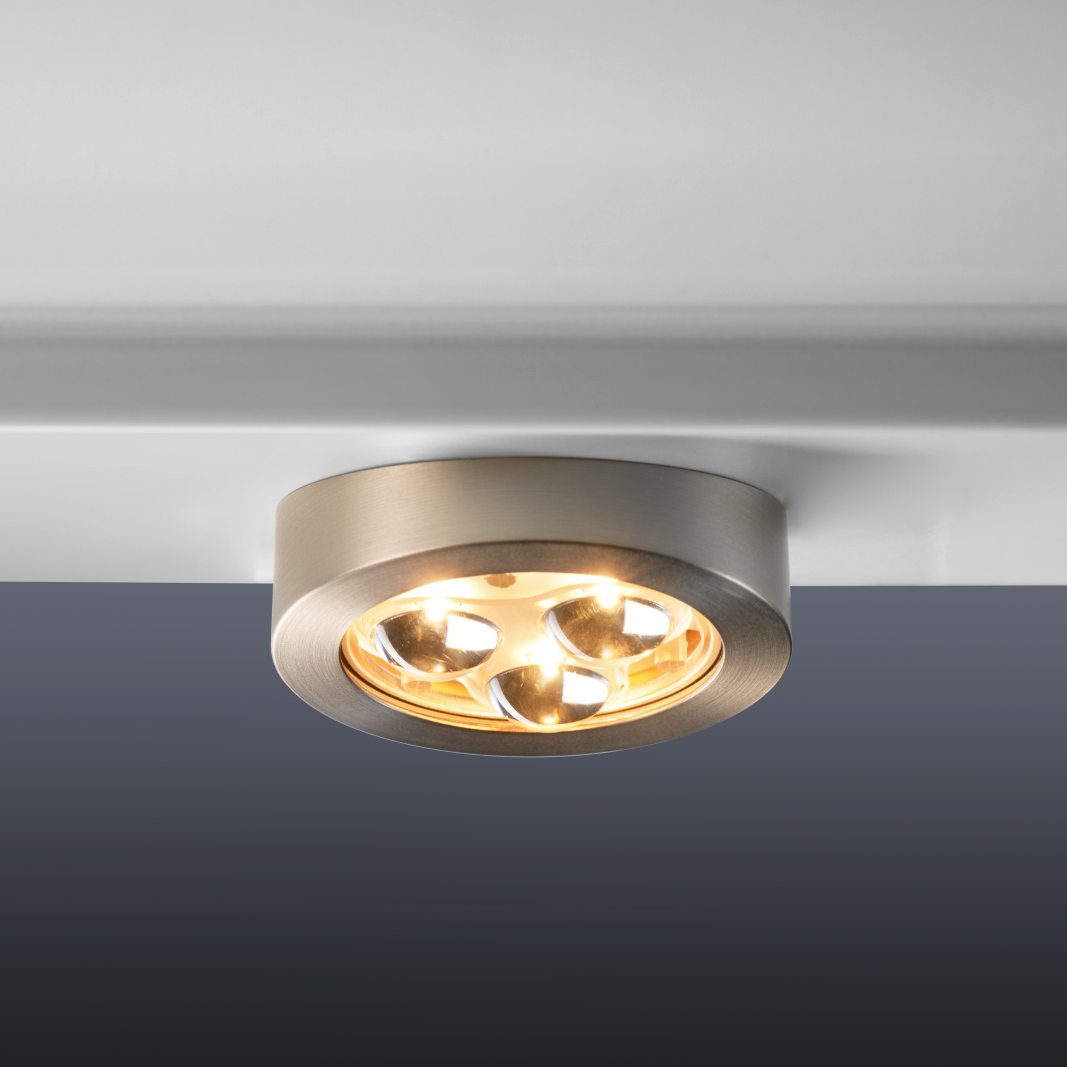

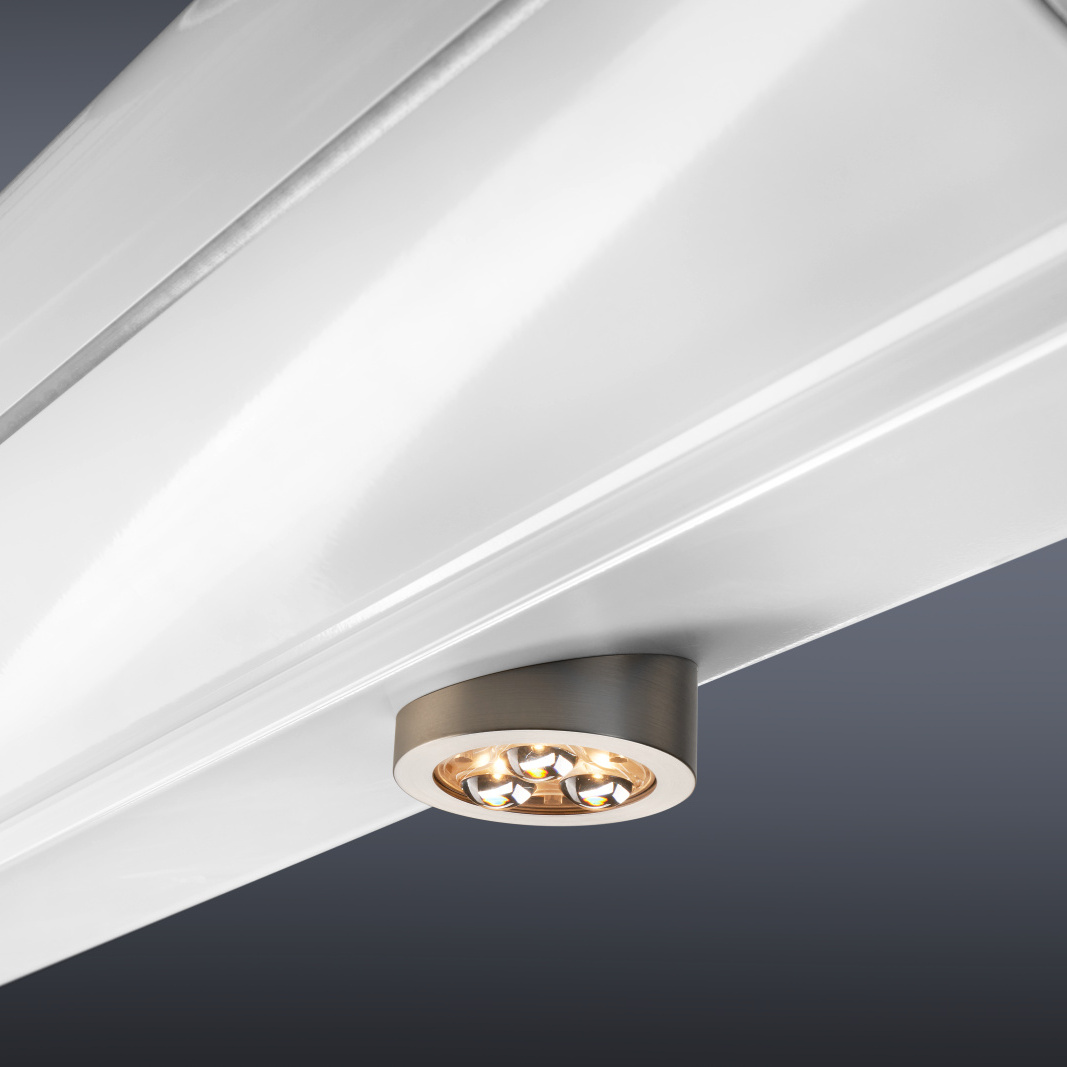

4. LED spot lighting

The sophisticated LED spot lighting is ingeniously built into the cassette, which means it can also be used when it is closed. The spotlights can be easily dimmed to create a cosy setting while casting a very flattering light over the facade and outdoor area.

The sophisticated LED spot lighting is ingeniously built into the cassette, which means it can also be used when it is closed. The spotlights can be easily dimmed to create a cosy setting while casting a very flattering light over the facade and outdoor area.

5. Types of drive

Crank or smartphone?

Our cassette awning can be adjusted both manually with a hand crank or a motor. On request, the awning can be controlled wirelessly or you can integrate it into a Smart Home system so you can operate it with ease at the push of a button via a central control unit or on your smartphone.

Lamellenstoren - Option Antriebsarten Wandschalter

6. Smart Home

At Schenker Storen you can find controller solutions for single-family homes or apartments right up to more intricate controller systems for large office buildings. Virtually all weather data can be recorded and analysed with our control devices. This means the system is able to respond in the best way to every situation.

Lamellenstoren - Option Smart Home 1

At Schenker Storen you can find controller solutions for single-family homes or apartments right up to more intricate controller systems for large office buildings. Virtually all weather data can be recorded and analysed with our control devices. This means the system is able to respond in the best way to every situation.

Lamellenstoren - Option Smart Home 2
Next

Downloads

Download area

Whether you are an architect, building engineer or building owner, all the important information, drawings and data you will need for our products, can be quickly and easily found in our Downloads section.

Brochure

Download our brochures for helpful overviews and all the information on our sun and weather protection products for gardens and terraces.

Cotrollers

Which controller for which area of use? To help you decide, download the overview to compare the features of all our controller products.
