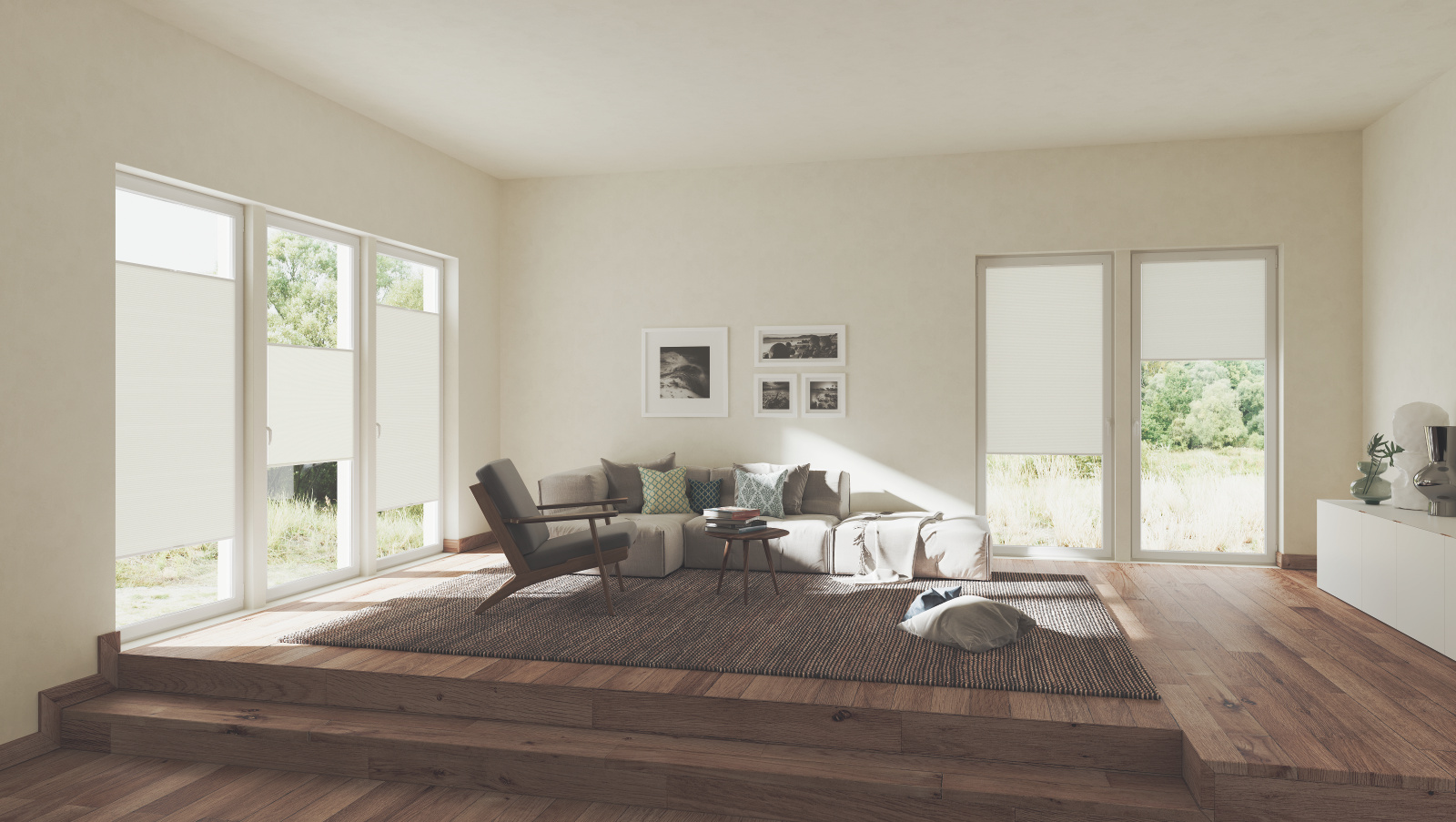

Pleated blinds

Versatile and captivating

Good moods come from within. So, design your four walls in your own unique style, for example with our timelessly beautiful pleated blind that will bring you joy every day. It keeps prying eyes out, creates a captivating pleated look and adapts to the most diverse situations and requirements. The wide variety of colours, shapes and models of our pleated blinds gives you even more scope for conveying your own personal style – perfect for living spaces, kitchens and bathrooms as well as offices and for professional use.

Our universal talent for all window shapes

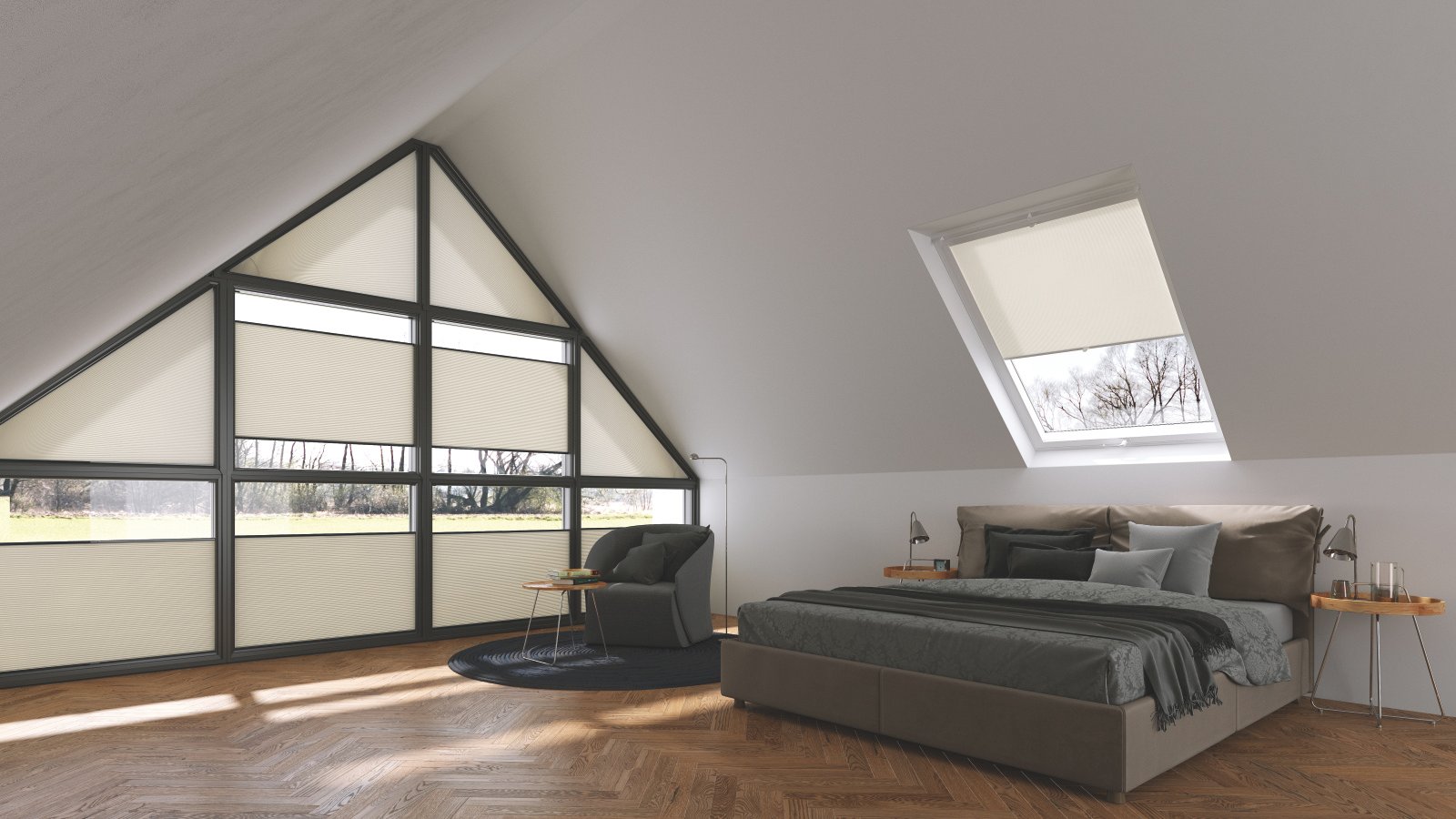

Our pleated blind is the all-rounder for interior shading and fits into all shapes of windows. Whether your window is triangular, pentagonal or mounted in the ceiling, precision craftsmanship is the key to success for every challenge. The pleated blind drop can be adjusted in a whole host of ways. It can be controlled, depending on the design variant, with a traditional wand, cord pull, chain pull or even with an electric drive. It can be mounted taut or free-hanging and, depending on the model, attached to the wall, ceiling or over the window. The upper and lower rails are made of extruded aluminium, and the colour of the tensioning cords matches the drop.

Width: min. 1000 mm – max. 2300 mm
Height: min. 1000 mm – max. 4000 mm
Maximum area: 5,98 m2

Variations

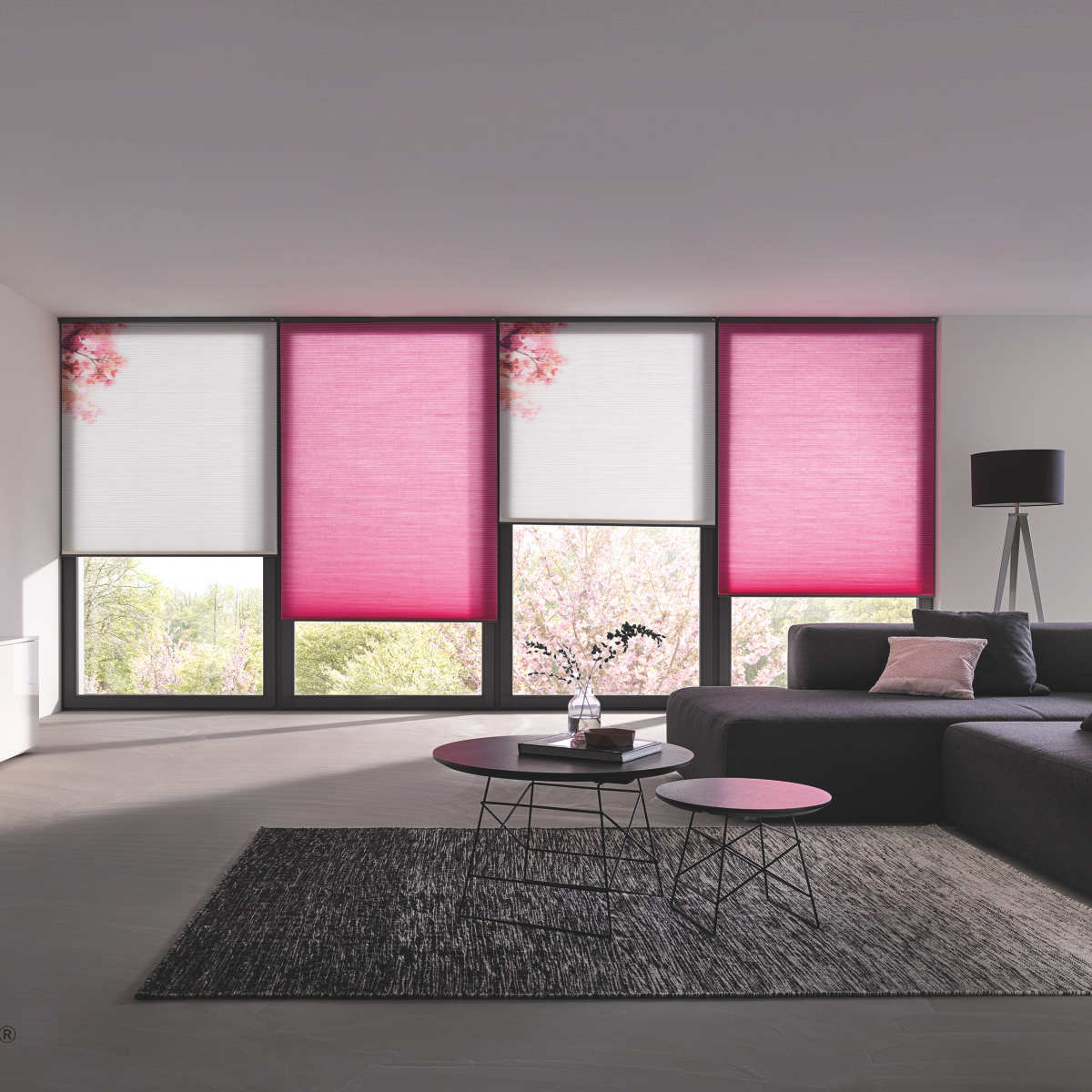

Taut

Taut

In the “taut” variant, a tensioning cord runs along the upper and lower rails. What makes the pleated blind so special is that it can be freely adjusted up and down from both sides. The drop is fixed with four clamping shoes. The entire system can be raised and lowered using the two tensioning cords. A taut pleated blind can even be installed over window fronts measuring 180 cm wide using a Maxi profile fitted with a counterbalancing spring. The taut pleated blind variant is particularly suitable for glazing bead installations.

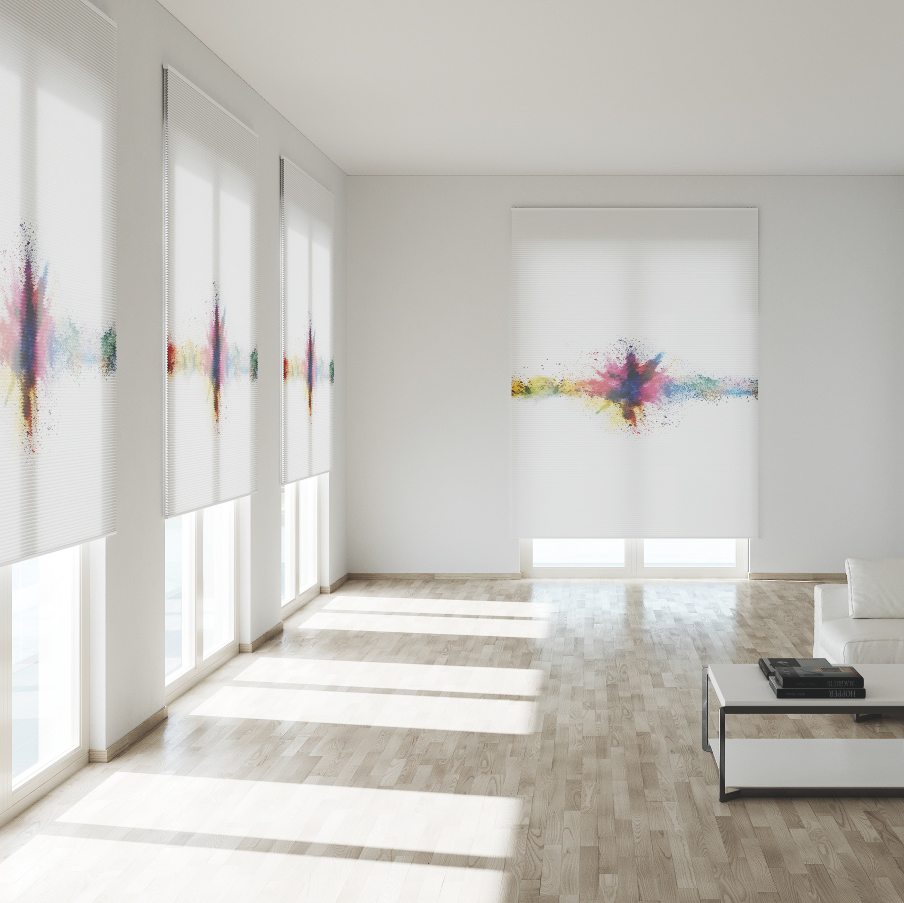

Free-hanging

Free-hanging

In the “free-hanging” variant, the pleated blind is fixed to the upper rail and does not slip downwards. It can be operated with a cord, chain or an electric drive or the lower rail can simply be moved up or down by hand. The drop is locked in each position. The pleated blind in its free-hanging variant is ideal for wall or ceiling installations where there is a window recess.

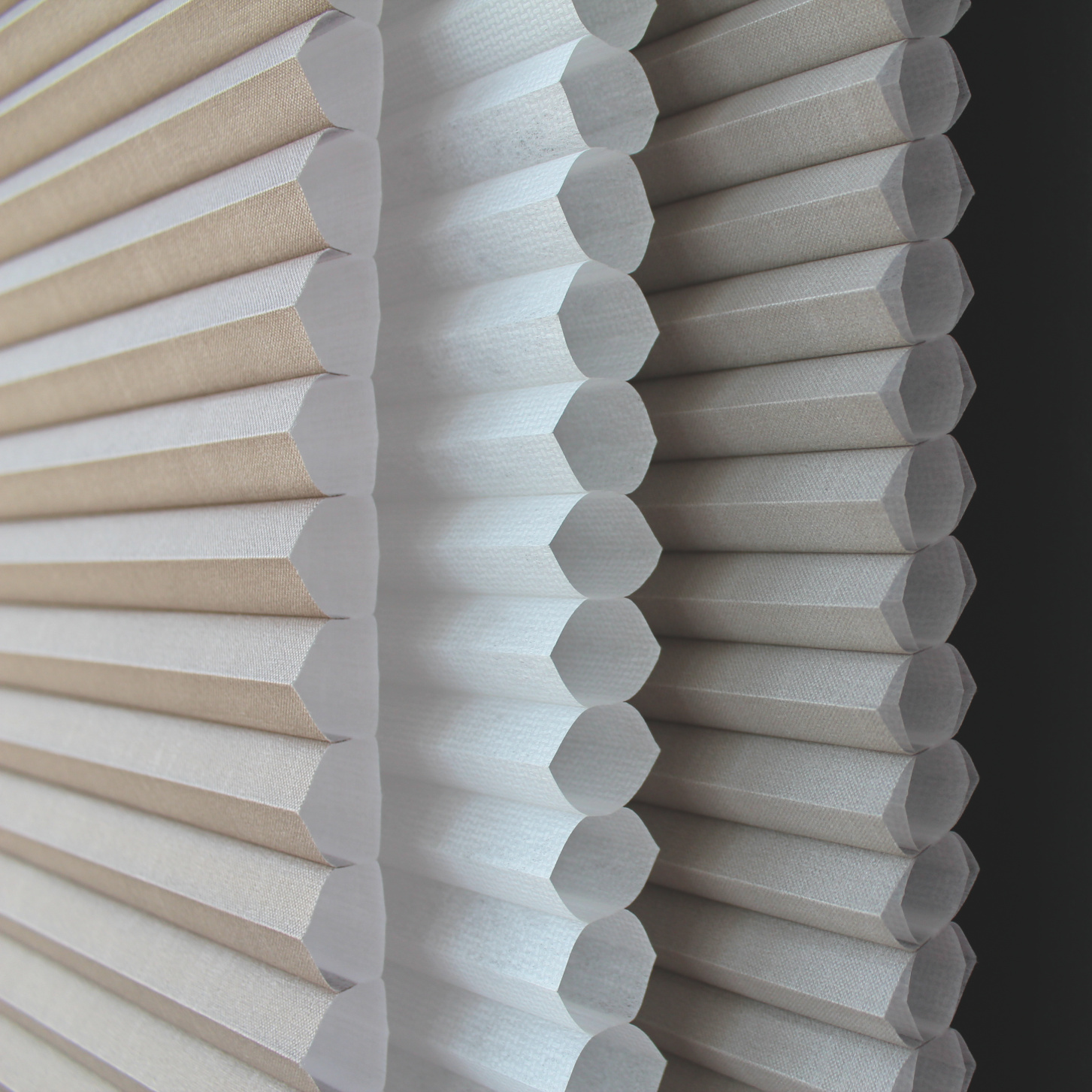

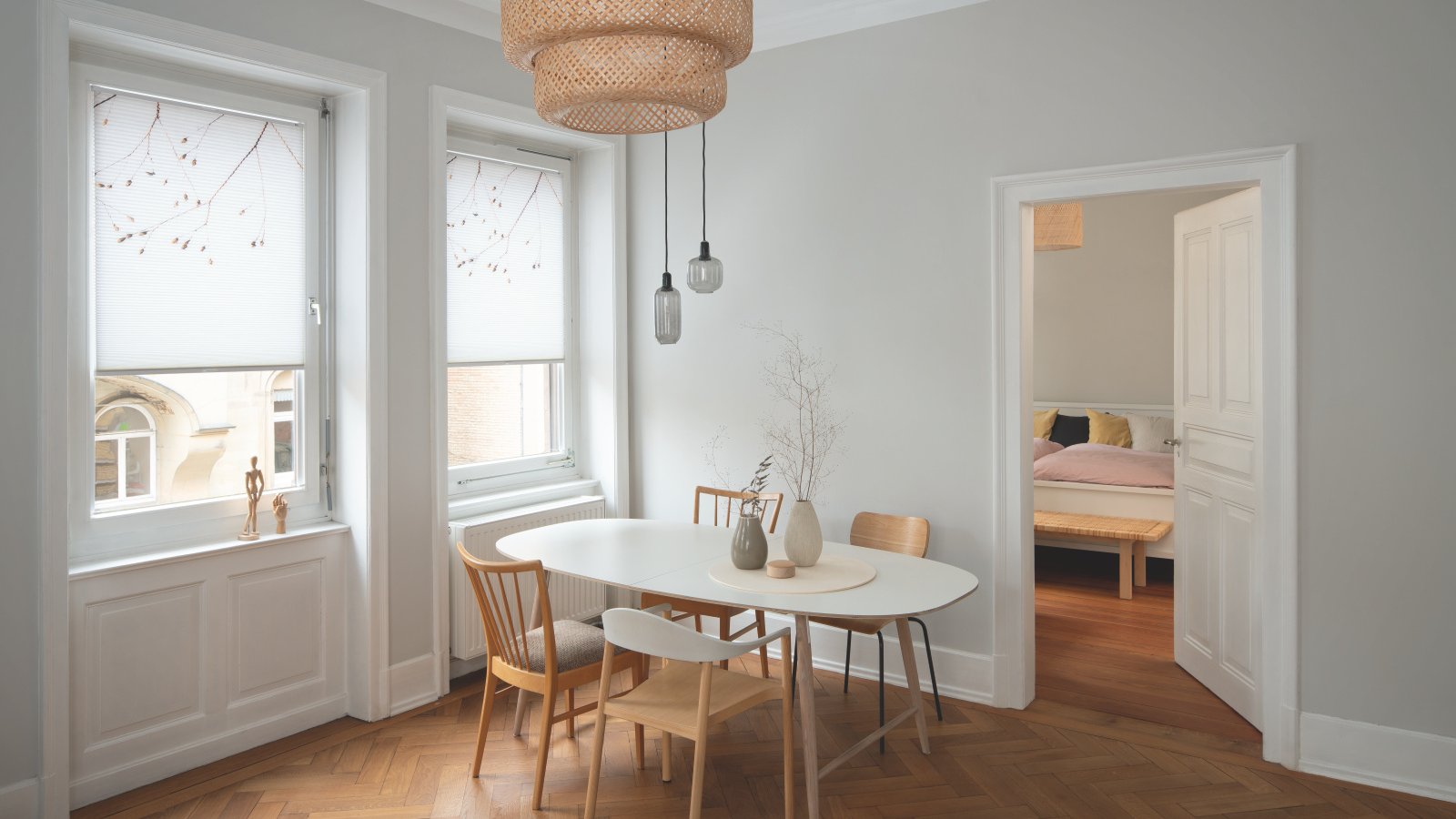

Honeycomb pleated blind

Honeycomb pleated blind

The honeycomb pleated blind builds on the advantages of the standard pleated blind. In addition to the sight and glare protection, it also offers better room acoustics and an improved energy balance.

As the name suggests, it has a hollow honeycomb structure between two layers of fabric. The air trapped in this honeycomb structure acts as an insulating layer delaying the transfer of heat and cold. It also diffuses the natural light creating a softer, cosier atmosphere and aesthetic look.

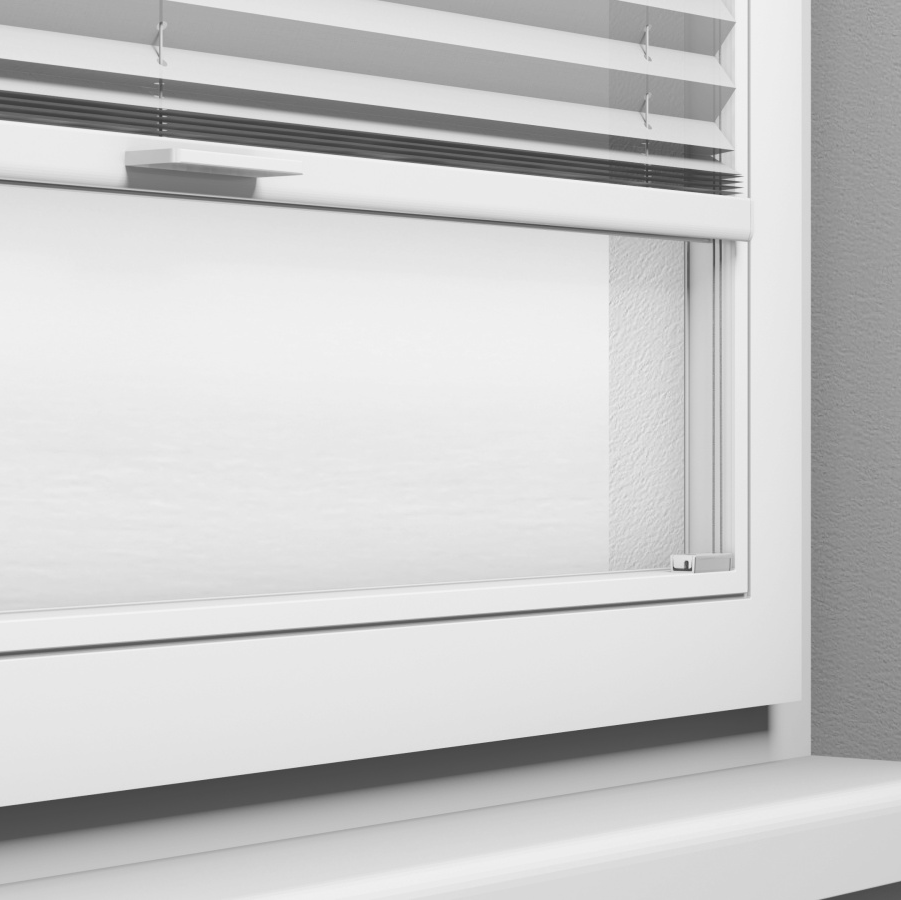

Types of installation

Types of installation

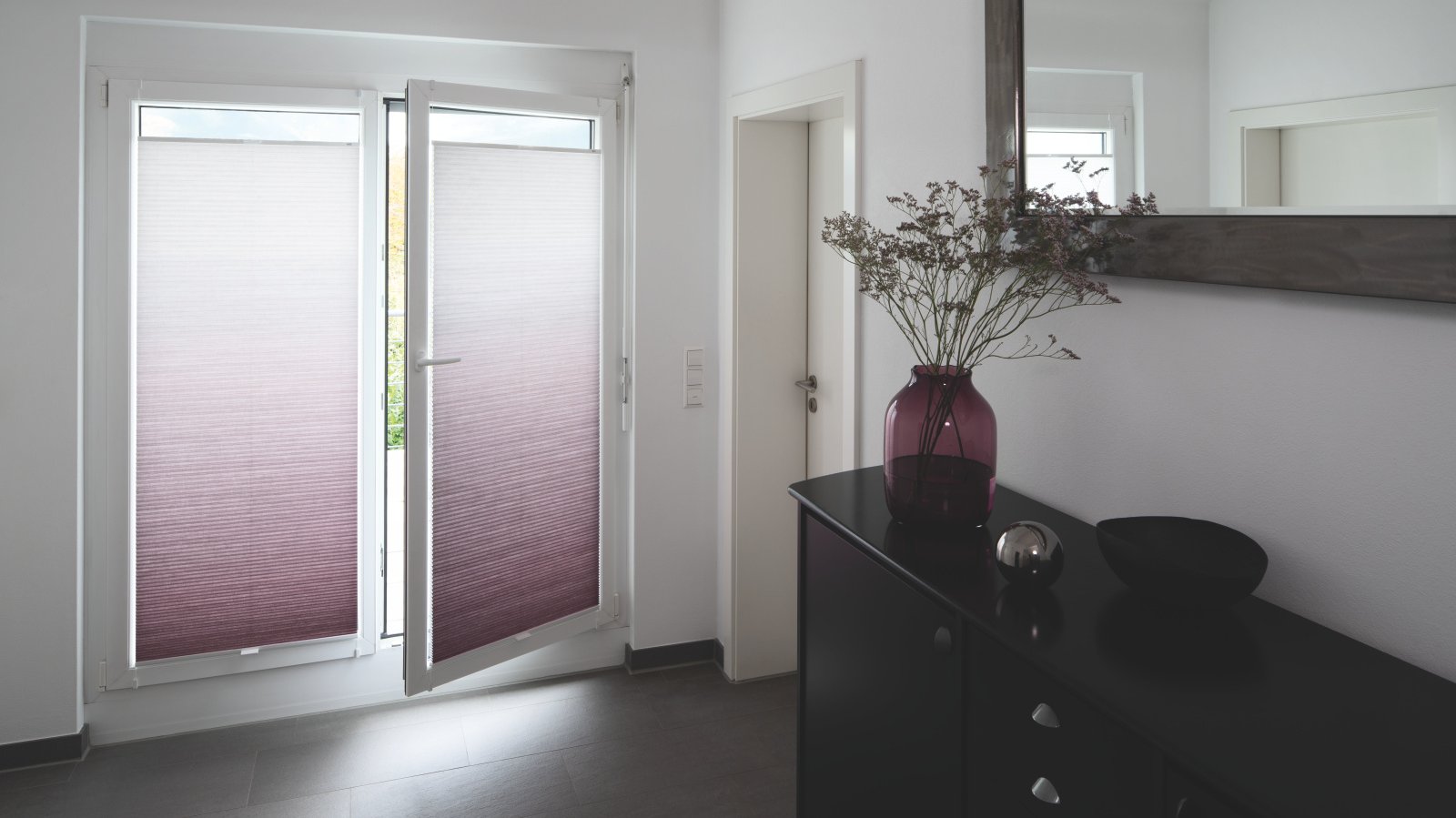

Depending on the design variant, our pleated blind can be mounted on the wall or ceiling. Here the system is mounted in front of the window and covers the entire window recess. There are various fixing systems available, such as clips and clamping shoes or angle brackets and glazing bead supports for a front assembly. Using clamp and glazing bead supports, our pleated blind can also be installed directly in the glazing bead or on the window sash. Where installations have an overhang, for example in rented apartments, the blind can be mounted without any drilling using adhesive sets or window clips.

A whole range of options for even greater comfort

There is a whole range of options on offer for our pleated blind, so it can best satisfy your needs and desires. Countless fabric designs to help you design an inviting living space. For even more comfort, certain designs can be controlled using our clever Smart Home solutions.

Product

/

Options

1. Fabrics

Live better with beautiful fabrics

In addition to protecting from glaring sunlight, prying eyes and keeping the heat in or out, fabrics also diffuse the lighting in the room. Our pleated blind comes in a variety of qualities and designs to suit different needs, such as antibacterial properties, flame retardancy or darkening. Our collection has a wide selection of different degrees of transparency, fancy designs and elegant structures inspired by the trends in urbanity and nature. The majority of our exclusive textiles are certified according to the Oeko-Tex® standard 100 and have a long service life.

2. Colours

3. Types of drive

Manual or electric?

Our pleated blind can be adjusted both manually with a wand or a motor. If you prefer, certain designs can be controlled wirelessly with or without a battery, or you can integrate them into a Smart Home system so you can operate them with ease at the push of a button via a central control unit or on your smartphone.

Lamellenstoren - Option Antriebsarten Wandschalter

4. Smart Home

At Schenker Storen you can find controller solutions for single-family homes or apartments right up to more intricate controller systems for large office buildings. Virtually all weather data can be recorded and analysed with our control devices. This means the system is able to respond in the best way to every situation.

Lamellenstoren - Option Smart Home 1

At Schenker Storen you can find controller solutions for single-family homes or apartments right up to more intricate controller systems for large office buildings. Virtually all weather data can be recorded and analysed with our control devices. This means the system is able to respond in the best way to every situation.

Lamellenstoren - Option Smart Home 2
Next

Downloads

Brochure

Download our brochures for helpful overviews and all the information on our sun and weather protection products for interior spaces.
