Wind-stable vertical fabric blind VS ZIP Pro

The Elegant

The VS ZIP Pro represents a new generation of wind-resistant vertical fabric blinds, combining high-quality architectural design with reliable sun protection, privacy, and clever detailing. Equipped with a proven ZIP system, the fabric is always securely anchored, even in high winds, delivering optimal shading and more privacy.

Thanks to its clean, minimalist lines and high-quality materials, the VS ZIP Pro blends in beautifully with modern facades. Built to last, users enjoy outstanding functionality, easy maintenance, and versatile expansion options for future-oriented architecture.

High-quality facade shading with precision fabric tension

The VS ZIP Pro stands out through its blend of high-quality design, innovative technology, and durable quality. Advanced manufacturing techniques, including an ultra-thin butt-bonded zip fastening, optimised fabric attachment, and a heavy-duty roller, create a smooth, uniform look across the entire installation.

The VS ZIP Pro also sets new standards in architectural design. Featuring slim side covers, hidden fixings, and concealed screws, the square box creates a crisp, modern aesthetic. Matching powder-coated aluminium guide rails complete the look, bringing a clean, unified finish to the building's exterior.

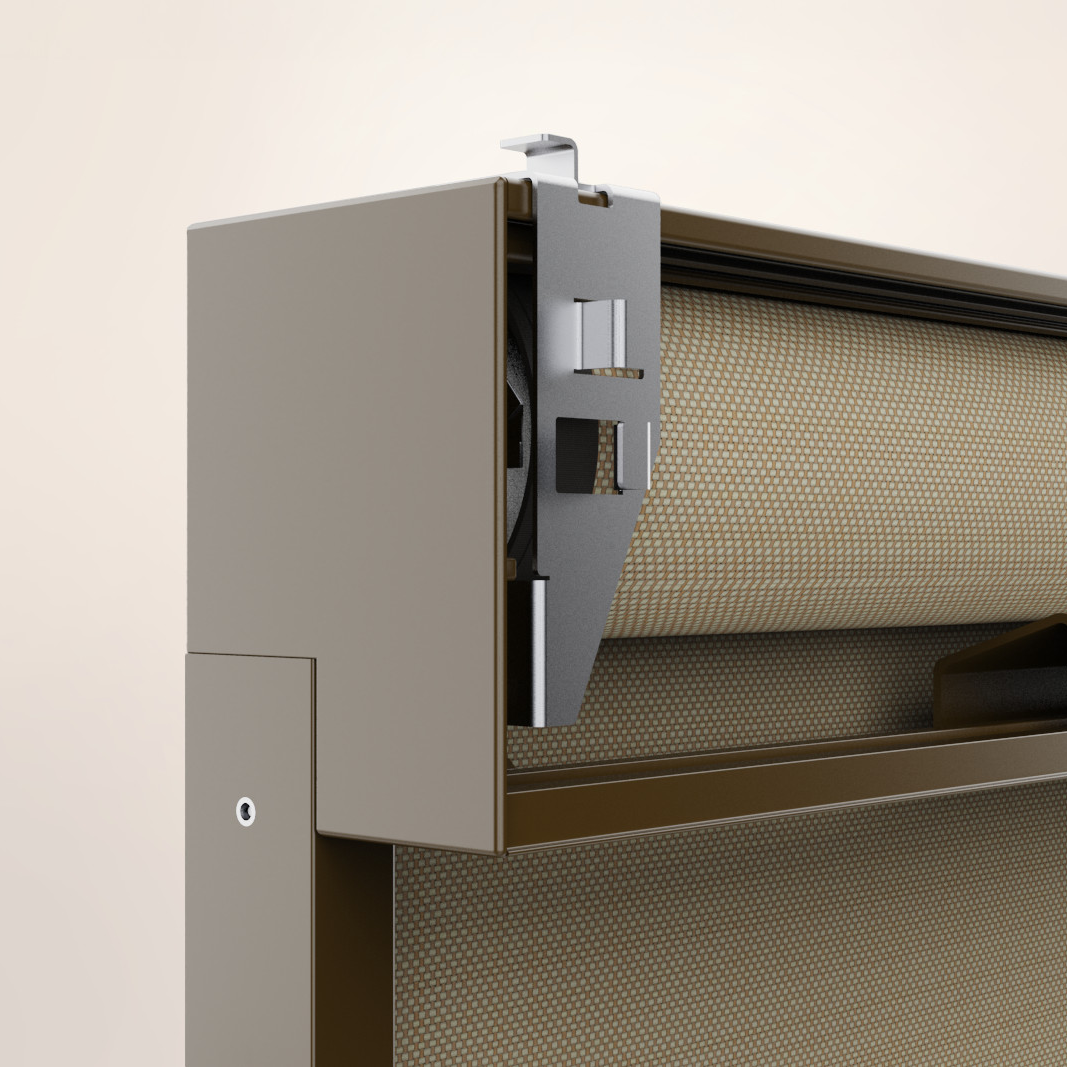

Beyond its high-quality aesthetic, the VS ZIP Pro excels in practical installation and servicing thanks to its clever detailing. Features like the ConnectIn connector and integrated service cover allow direct access to key components, making it easier for routine maintenance and future upgrades. The result is a shading solution that combines high-end aesthetics with a practical, future-ready operation.

Height (hl): 400 mm – 6000 mm

Width (bk): 630 mm – 6000 mm

Maximum area: 18 m²

Maximum wind speed: 92 km/h (wind class 6)

All product downloads

Variations

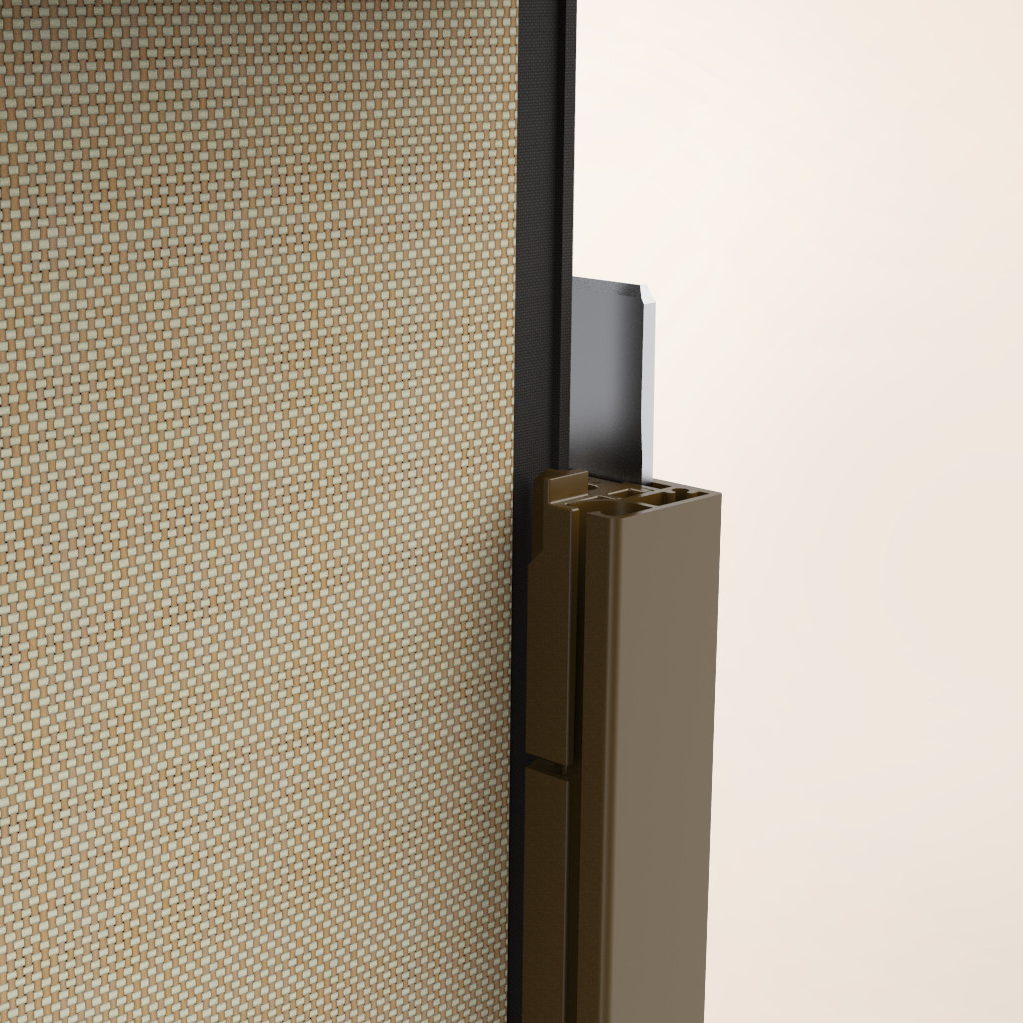

The ZIP system

In a ZIP system, the fabric is held securely along its sides by a zip fastening inside the guide rails. This keeps the fabric pulled taut even in high winds, maintaining a ripple-free finish and reliable shading.

Recess assembly or front-mounted installation

VS ZIP Pro .InSide
The recess-mounted version is designed to sit completely within the recess, so the wind-stable vertical fabric blind disappears out of sight when retracted. This creates a smooth, uncluttered facade that preserves crisp architectural lines, making it ideal for reinstallations.

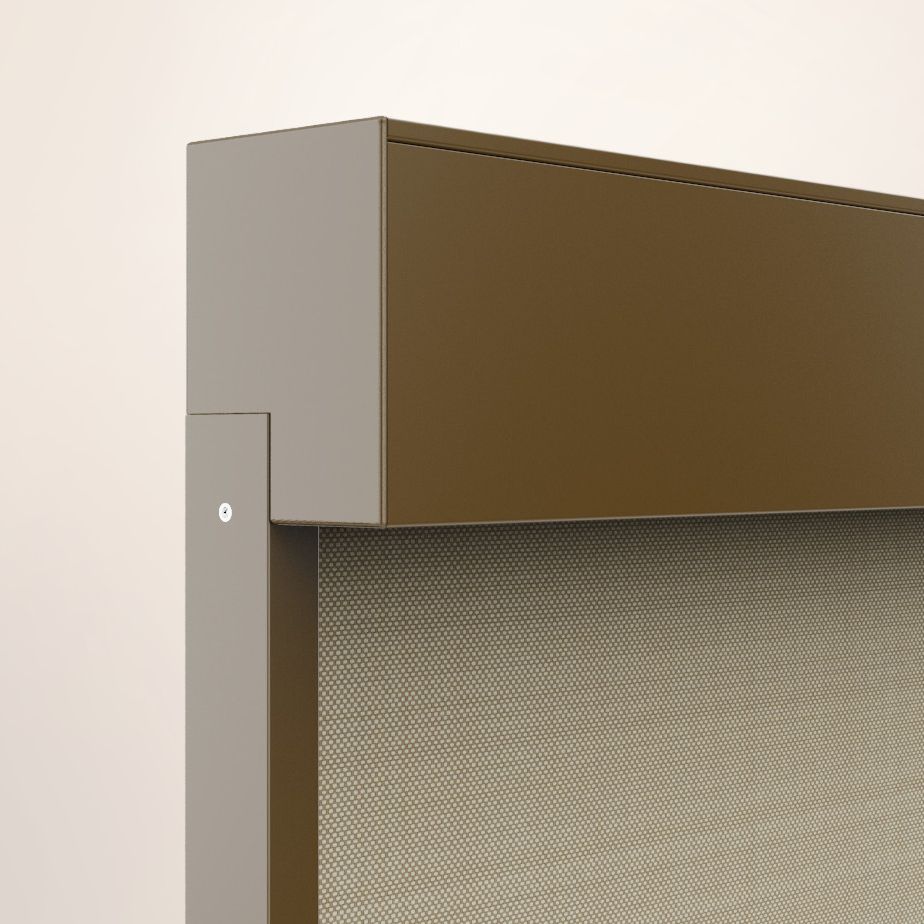

VS ZIP Pro .OnSide
In front-mounted installations, the wind-stable vertical fabric blind is mounted directly onto the building envelope. A box is built in as standard to protect the fabric as much as possible from the rain and dirt. It is particularly well suited to retrofits, renovations, or projects where the shading system forms an explicit design feature on the facade.

Profile guides

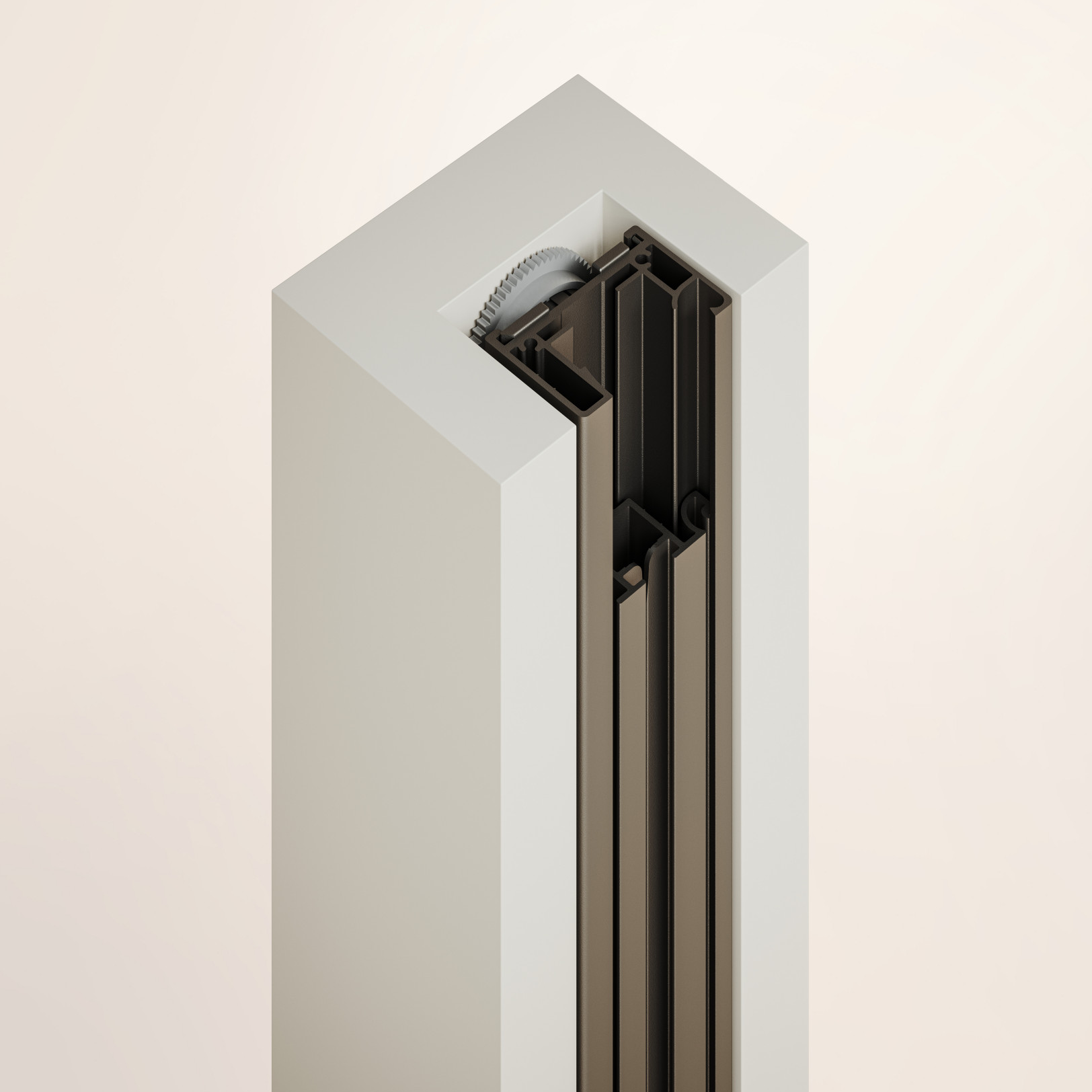

.InSide guide
Recessed flush into the facade wall, the .InSide guide features an optimised flush-mounted installation system that accommodates structural tolerances on site.

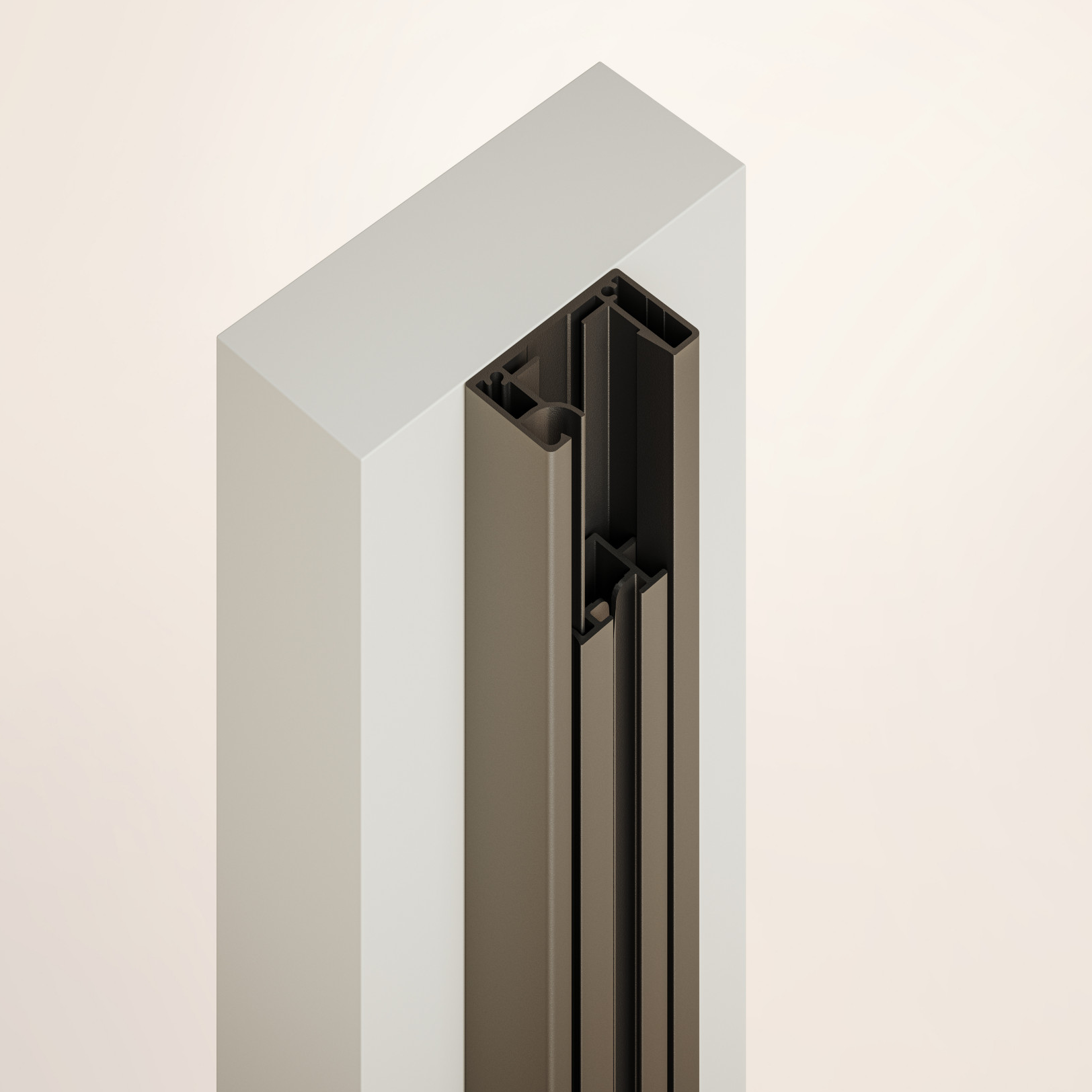

.OnSide guide
Surface-mounted onto soffits, facades, or brackets, the .OnSide guide is the most versatile solution for almost any structural scenario. Thanks to its different installation types, it adapts flexibly to any facade, whether it is plaster, brickwork, timber, or rainscreen cladding.

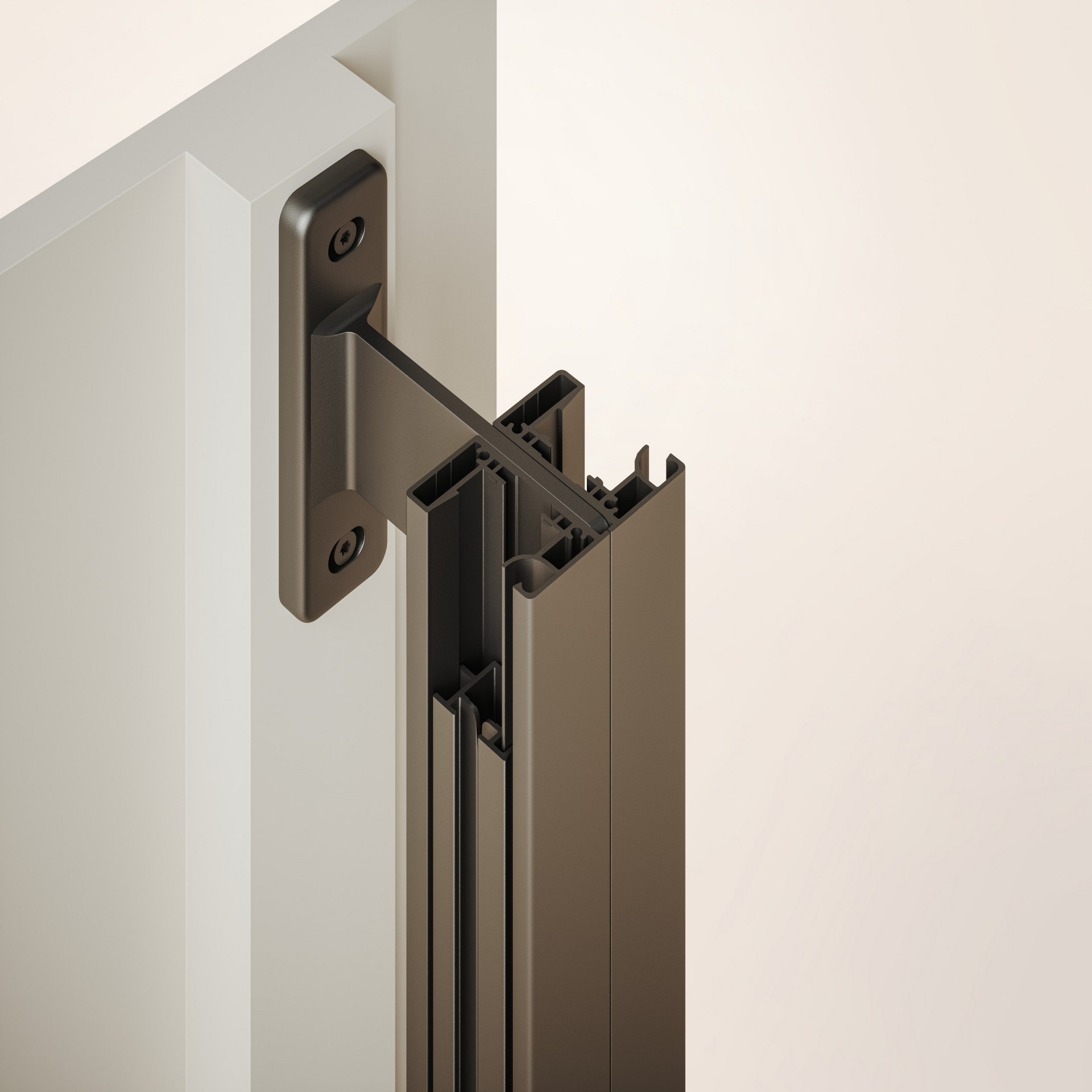

.TwinSide guide
The .TwinSide guide couples two adjacent installations within a single dual-channel rail. This minimises the gap between side-by-side installations, making it ideal for wide post-and-beam facades.

A whole range of options for added comfort

There is a whole range of options on offer for the wind-stable vertical fabric blind VS ZIP Pro so it can best satisfy your needs and wishes. Countless fabric designs and a wide selection of colours for the frames help you create a beautiful look for your facade, balcony, and terrace. With the eclipse option, you benefit from highly effective room darkening, while the solar drive makes it easy to use without the need for an additional mains power connection. For added comfort, our products can be controlled via our clever smart home solutions.

Product

/

Options

1. Fabrics

Whether providing privacy, glare protection, or maintaining the clearest possible view outside, the VS ZIP Pro offers a wide selection of materials, colours, transparency levels, and fabric weaves, so it can be tailored to your architecture, usage, and personal style.

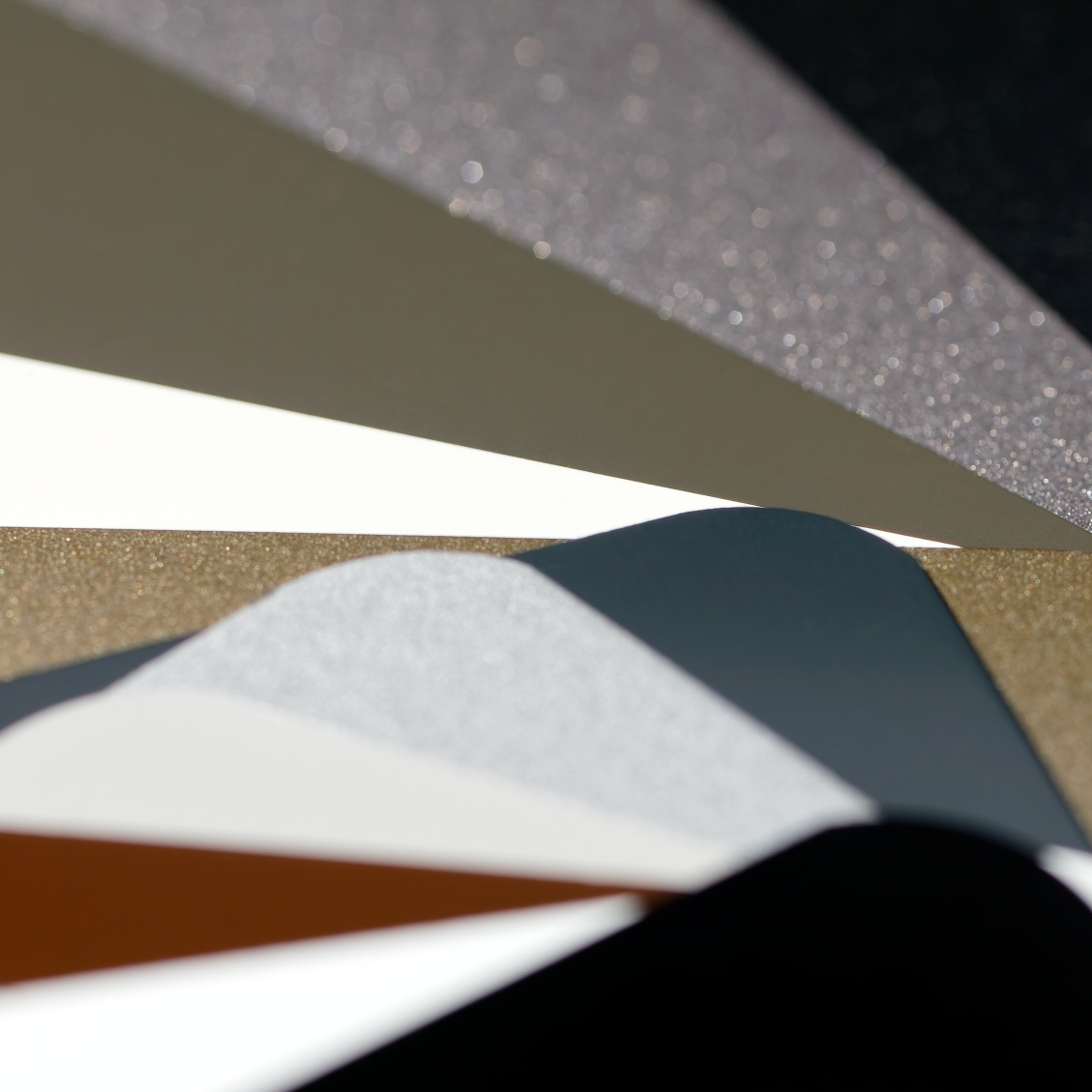

2. Colours

Decoration and protection

Match the colour of front-mounted boxes, profile guides, and drop profiles with your window and facade. At Schenker Storen there is an almost endless selection of colours to cater for the colour scheme of your choice. Thanks to our in-house powder-coating system, we produce weather-resistant, scratchproof and dirt-repellent products and can therefore guarantee long-lasting colour fastness.

3. Smart Home

Schenker Storen offers smart home solutions for single-family homes and apartments, and sophisticated controller systems for large office buildings. The VS ZIP Pro also makes it straightforward to retrofit existing sun protection systems and integrate them effortlessly into a smart home system.

Smart Home

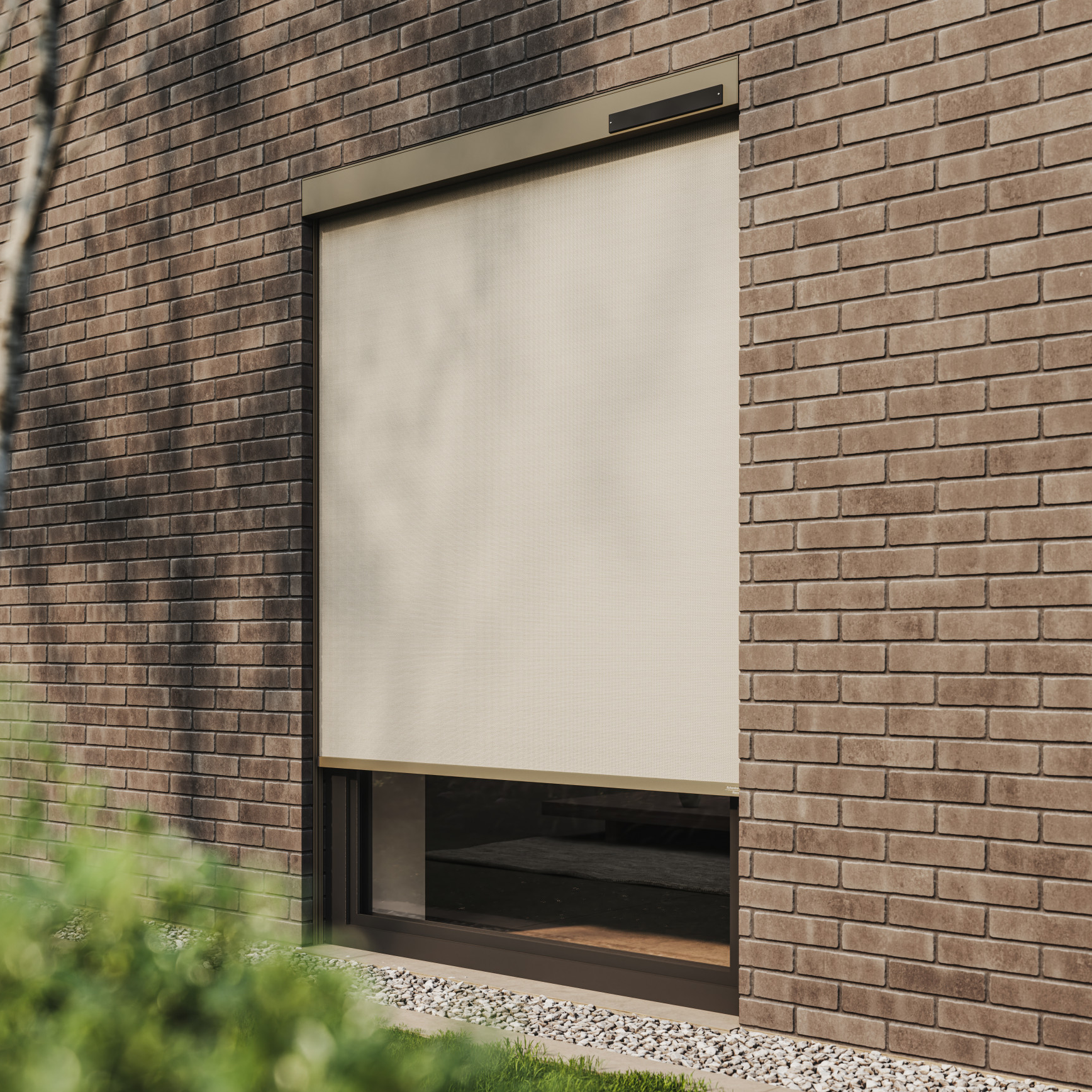

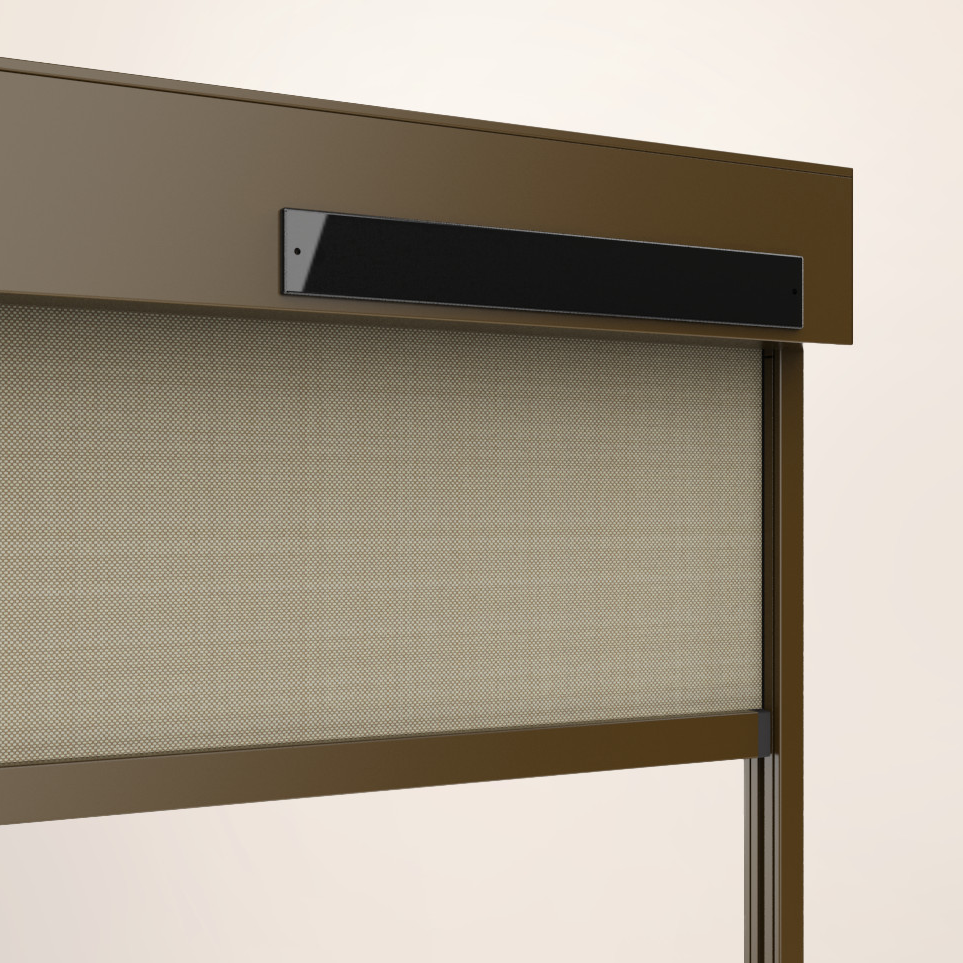

4. Solar drive

The VS ZIP Pro is optionally available with a solar drive. Thanks to an integrated solar module, the system uses energy from the sun, and doesn’t need an additional mains power connection to work. This solar option is ideal for retrofits, renovations, or in places where cabling would be difficult to run, reducing installation work and offering greater flexibility in the design.

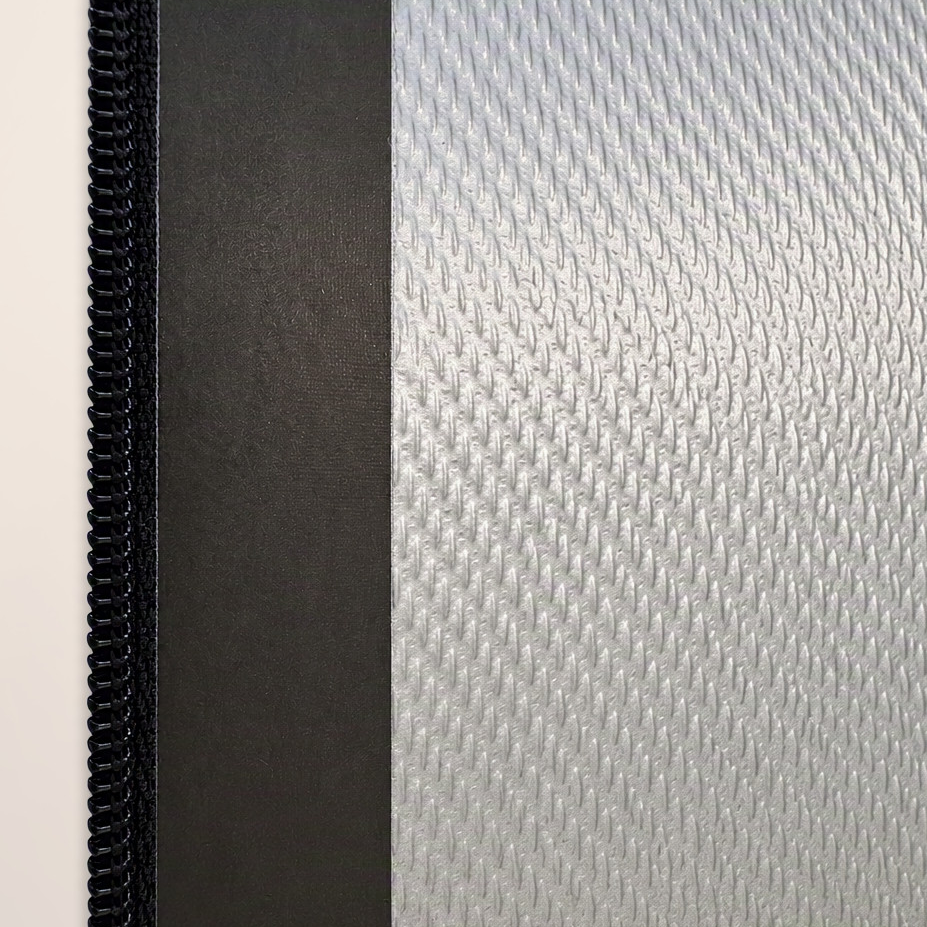

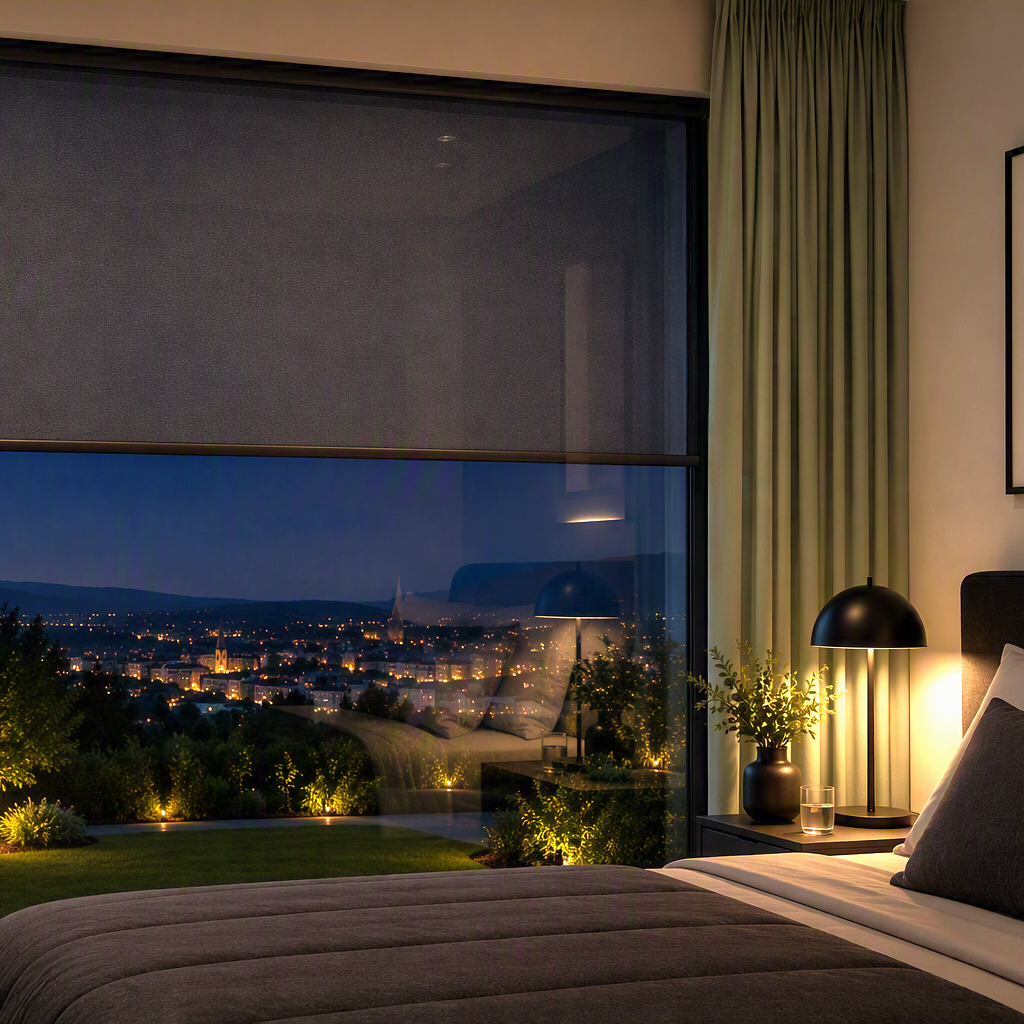

5. Eclipse

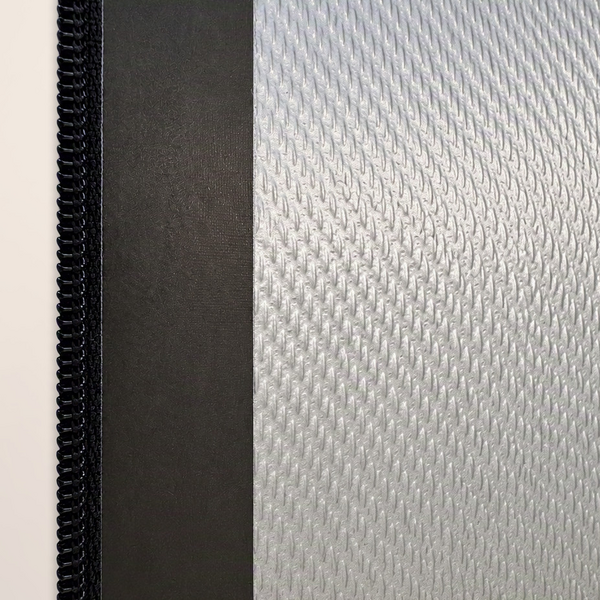

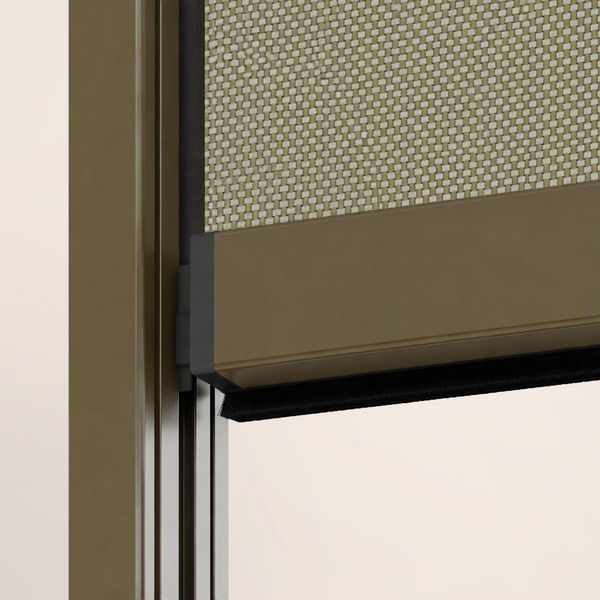

The eclipse option creates optimal conditions for peace and quiet, privacy, and a good night's sleep. It combines high-quality blackout fabrics with a light-proof zip fastening and an integrated blackout brush seal. This blocks out the light almost entirely without impairing the high-quality look of the VS ZIP Pro.

Fabric bar seamlessly integrated into the cassette design.

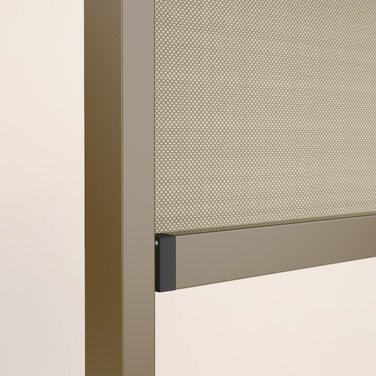

Clean transitions with no visible seams on the guide rails or fabric bar.

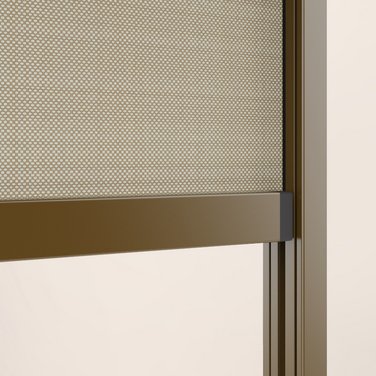

Tone-on-tone design for a harmonious overall appearance.

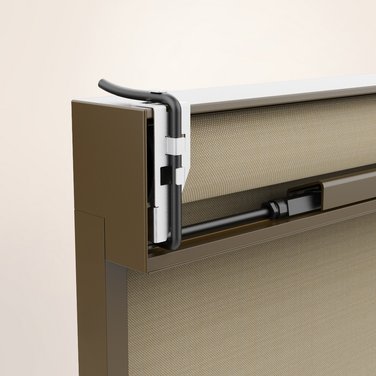

ConnectIn plug solution with easily stowable connector coupling.

Direct access to key components, even in fully integrated systems.

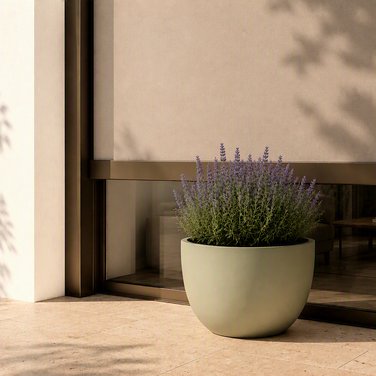

Automatically detects obstacles and supports safe operation.

Downloads

Download area

Whether you are an architect, building engineer or building owner, all the important information, drawings and data you will need for our products, can be quickly and easily found in our Downloads section.
