Compact venetian blind VR 70 / VR 90
The popular all-rounder

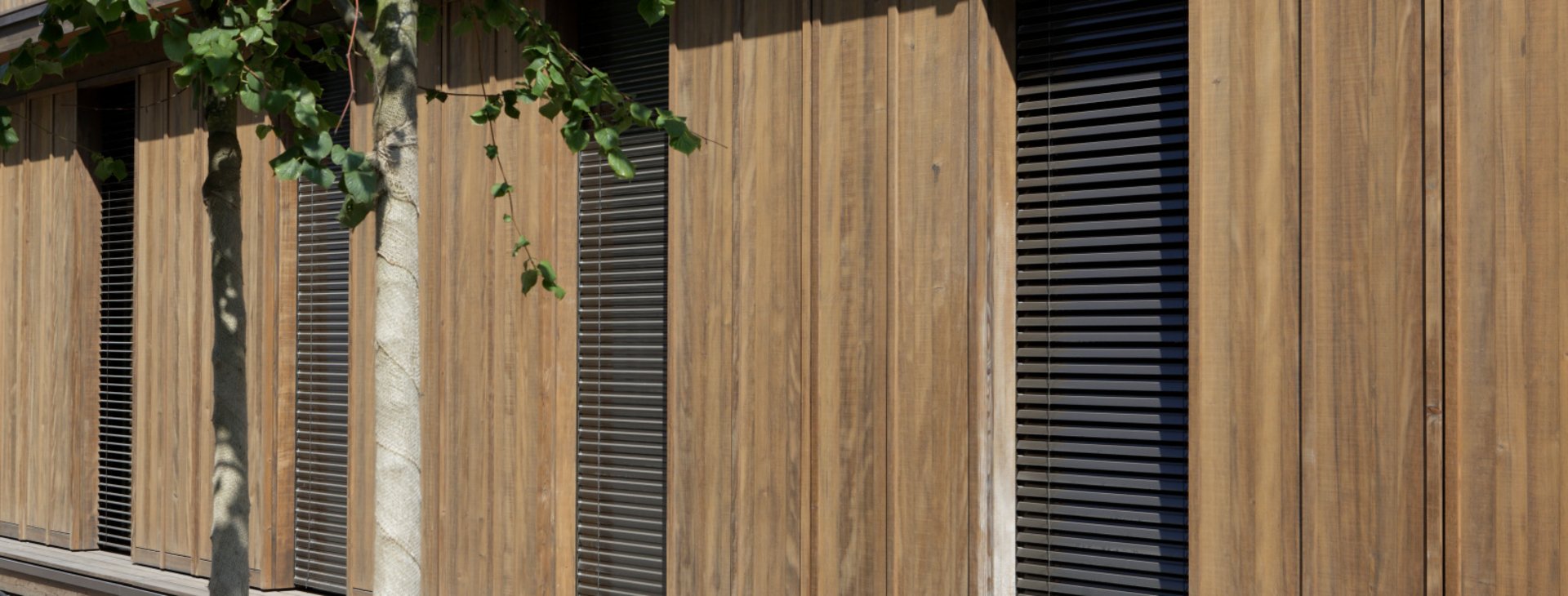

Its vast range of applications makes our compact venetian blind extremely appealing. It is suitable for single-family homes and apartment buildings, as well as public buildings and office blocks, and adapts both aesthetically and technically to the most diverse building settings. The special shape of its slats ensures a complete and accurate control of the amount of daylight let in. This means the lighting in the room can be actively arranged to create the ideal living and working atmosphere, as well as the environment for a restful sleep. The proven compact venetian blind technology is easy to operate, quiet and extremely popular.
Variations
Slat width 90 mm
Slat width 90 mm
Elegant slat profile for architecturally aesthetic facade surfaces.
Sturdy Z-slats, slat width 90 mm and slat thickness approx. 0.42 mm, slats flanged on both sides with noise and light attenuating profiles.
Slat width 70 mm
Slat width 70 mm
Elegant slat profile for architecturally aesthetic facade surfaces. Because of the VR 70’s small installation dimensions with a niche depth of min. 110mm, it is an excellent choice for renovations and conversions.
Sturdy Z-slats, slat width 70 mm and slat thickness approx. 0.42 mm, slats flanged on both sides with noise and light attenuating profiles.
Profile guide
Profile guide
Continuous guide made from extruded aluminium that slides quietly and securely. Shapes and designs: round, angular, slim and wide. Can be installed on the side of the soffit or with various guide brackets. The “disguised guide” to fit in seamlessly with the facade. Directly connected to the window with the option of lowering in the side soffit or as an alternative to the bracket-installation. Facade installation option: Integration of the guide in the facade profile on metal construction facades.
Cord guide
Cord guide
Fine, discrete and anti-corrosive steel cord thanks to its plastic coating (cord diameter: 2.5 mm). Easy, space-saving assembly with spring pre-load allow for an unrestricted installation. The cord holder does not have to be fixed onto a wall or soffit.
The cord guide opens up a wide choice of architectural possibilities in the design of the facade.
Wind-stable
Wind-stable
The wind-stable compact venetian blind VR 90 is specially designed for buildings exposed to winds. The combination of cord and profile guide provides greatly increased wind stability, wind speed 92 km/h, even with wider windows.
Recess assembly
Recess assembly
In this installation scenario, the compact venetian blind is fully integrated into the recess. Depending on the size of the recess, a slat width of 70mm or 90mm can be used. The blind is built into the facade so it is concealed when retracted. This gives the facade an uncluttered look.
The following types of installation are available:
Conventional guide:
Installation of the frame, which is open at the bottom and easily accessible for servicing purposes, using an assembly support. The guides are attached individually.
Fixed guide: Self-supporting guide system
Installation of the frame on fixed guides with guide supports, which is open at the bottom and easily accessible for servicing purposes. After the fixed guides have been installed, the frame can be connected directly with them. The self-supporting window blind design protects the insulation in the recess and also reduces the transmissions of noise and makes for an easy installation.
Installation at the front of the building
Installation at the front of the building
In this installation scenario, the compact venetian blind is attached to the front of the facade. The window blind design projects out from the facade. An additional canopy is attached to the facade to protect the blind and cover it when it is retracted. The canopy is available in various shapes and colours.
Fixed guide: Self-supporting guide system
Installation of the frame on fixed guides with guide supports, which is open at the bottom and easily accessible for servicing purposes. After the fixed guides have been installed, the frame can be connected directly with the guides. The self-supporting window blind design protects the insulation in the recess and also reduces the transmissions of noise and makes for an easy installation.
A whole range of options for more comfort
There is a whole range of options on offer for the compact venetian blind so it can best satisfy your needs and desires. There are countless options for its installation and light control to create the best possible look for your facade and create the optimum room climate. Whether you choose one of our beautiful standard colours or go for something more unique, Schenker Storen has just what you’re after.
For even more comfort, our products can be controlled with our clever Smart Home solutions. With our wide selection of sensors, you can be assured of a safe operation that is perfect for your product. Always with you – Swiss quality
Product
/
Options
1. Working position (A)
This special function prevents a sudden blackout when the blinds lower. There is enough light in the room to see until the venetian blind is completely shut.
2. Light optimised (LO)
LO, Light optimised for a good room and working climate
The slats close unevenly because the distances between them are not all equal. So there are three ranges of light in the different slat settings.
The upper section lets in the daylight and gives a cosy feel to the room. In the middle section, a subtle infiltration of light creates a pleasant working atmosphere. In the lower section, the slats are closed, thereby providing glare and sight protection.
The option of the perforated slats can also make a big difference in increasing the sense of well-being in the workplace.
3. Perforated
Sun shading with transparency
The perforated slats still allow you to view outside even when the blind is lowered and closed. With this special kind of slat, you can make the most of the natural daylight even when the blind is lowered and closed. The finely perforated slats still ensure there is sufficient glare protection. (Hole proportion 5%, hole size 0.8 mm).
4. Panel
In this installation scenario, the compact venetian blind is built into the recess and the mount on the outside is covered with an additional panel. This panel offers further options for the design of the facade. The panels are available in a wide selection of shapes and colours.
There are two types of installation to choose from: With a conventional guide or a fixed guide (self-supporting guide system).
5. Acoustic insulation
The conventional installation also comes with the option of an acoustic insulation frame bracket. This unique and patented noise protection measure absorbs noises and noticeably reduces the building emissions. Particularly suitable for semi-detached and terraced houses as well as condominiums.
The conventional installation also comes with the option of an acoustic insulation frame bracket. This unique and patented noise protection measure absorbs noises and noticeably reduces the building emissions. Particularly suitable for semi-detached and terraced houses as well as condominiums.
6. Insect screen
The insect screen can be fitted into the compact venetian blind VR 70 with the space-saving combined guide. This reliable insect screen stops bothersome insects entering your home, even when the windows are open. It is easy to look after and weather-resistant.
7. Colours
A rainbow of colours
You can match the colour of the slats, profile guides, panels and canopies with your window and facade. At Schenker Storen there is an almost endless selection of colours to cater for the colour scheme of your choice. Thanks to our in-house powder-coating system, we produce weather-resistant, scratchproof and dirt-repellent products and can therefore guarantee long-lasting colour fastness.
8. Types of drive
Our compact venetian blind can be powered both manually with a hand crank or a motor. You decide whether to control your blinds wirelessly or connect them to a Smart Home system to make operating them even easier.
9. Smart Home
At Schenker Storen you can find controller solutions for single-family homes or apartments right up to more intricate controller systems for large office buildings. Virtually all weather data can be recorded and analysed with our control devices. This means the system is able to respond in the best way to every situation.
At Schenker Storen you can find controller solutions for single-family homes or apartments right up to more intricate controller systems for large office buildings. Virtually all weather data can be recorded and analysed with our control devices. This means the system is able to respond in the best way to every situation.
10. Minergie
By connecting one of our blinds to a controller, you automatically upgrade your product to the Minergie standard. Now your blinds meet the highest energy standard for low-energy houses in Switzerland.
