Extendable blind AS 95 / AS 150 / ASR 95

The sophisticated choice – making the most of natural lighting

Our extendable blind brings together all the advantages of a vertical awning with those of a drop-arm awning.

It can help create a harmonious appearance, especially on straight facades, and is frequently used in residential complexes as well as office buildings, and increasingly in single-family homes.

The extendable blind is the ideal choice for providing both ventilation and sun shading in the room. The retractable arms can be freely adjusted in every position up to an angle of 180°. So, when the extendable blind is fully extended, not only does it provide maximum shade, it still lets you fully enjoy the natural light without sitting in direct sunlight.

Sophisticated lighting and shading system for special requirements

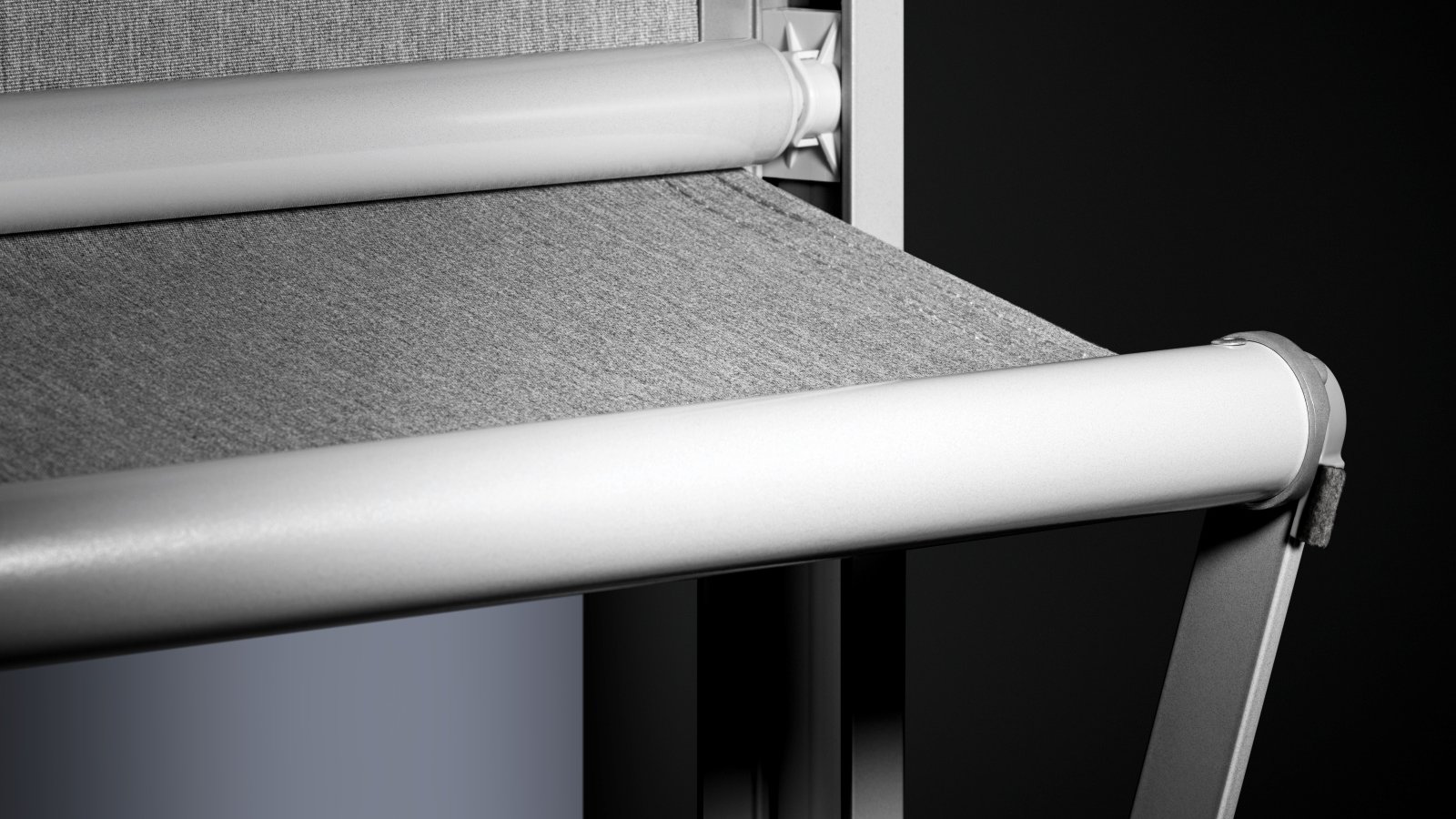

Our extendable blind offers maximum stability and a special feature: recess installation. This tried and tested system ensures the canopy fabric runs and winds smoothly. Two retractable arms wind the fabric in and out along the side rails to the desired position, and an angular or round guide ensures it moves smoothly. The fabric rod filled with quartz sand ensures the canopy’s fabric remains permanently taut. When the retractable arms are vertical, they are mechanically locked in place.

The box, fabric rod and guide profile are 100% resistant aluminium and are all customisable. The extendable blind is also produced from sturdy, rustproof chrome-plated stainless steel. A wide selection of different canopies further enhances the appeal and benefits of this extendable blind.

Height (hl): 1200 mm – 4000 mm

Width (bk): 400 mm – 4000 mm

Maximum area: 9 m²

Maximum wind speed: 38 km/h (Wind class 2)

All product downloads

Variations

Size 95

The AS 95 model is stylish and slim making it perfect for shallow recesses.

The AS 95 comes with or without a canopy. There are two lengths to choose from. ((Typ 50 und Typ 53.)) The AS 95 can be linked with two systems in a row, at most. The retractable arms come in two lengths: 400 mm and 500 mm.

Size 150

Our AS 150 is suitable for larger window frames and surface areas. It can be linked with several systems extending over a maximum area of 18 m². Despite the size, its retractable arms and fabric rod are still discrete and stylish.

The AS 150 comes with or without a canopy. There are five different shapes and lengths to choose from.

Plus, the retractable arms come in two different lengths: 400 mm and 500 mm.

Stainless steel

We created the ASR 95 with a chrome-steel finish for regions where it is important for the parts to be more resistant to corrosion. The rod guide and extending mechanism are made completely from sturdy, rust-proof stainless steel. The ASR 95 has four possible retractable arm lengths: 400 mm, 500 mm, 700 mm and 1000 mm. This model also comes into its own where space is an issue as its roller diameter is just 52mm. Plus, the maximum extension angle is 135°. The ASR 95 comes with or without a canopy. There are two lengths to choose from.

Recess assembly or front-mounted installation

In the recess assembly installation scenario, the self-supporting extendable blind is built into the recess. The blind is almost undiscernible in the facade when it is retracted, so it doesn’t create a cluttered look. This means it is also suitable for reinstallations.

With a front-mounted installation, the extendable blind is attached to the facade. The front-mounted installation can be fitted with one of the canopies from our wide selection to best protect the fabric from the rain and dirt. It is particularly suitable for retrofitting or renovation projects.

Profile guides

The extendable blind has an elegant, slim guide profile that fits in well with modern architecture – available colourless and colour anodised or powder-coated.

It slides quietly and securely on the continuous guide made from extruded aluminium.

It can be installed as a front assembly, on the side of the reveal directly on the wall or with different guide brackets (e.g. a front-mounted installation). The roller bearing is attached to the profile guides, not the building, which makes it a self-supporting system.

A whole range of options for even more comfort

There is a whole range of options on offer for the extendable blind so it can best satisfy your needs and desires. Countless fabric designs and a wide selection of colours for the frames help you create a beautiful look for your facade, balcony and terrace. For even more comfort, our products can be controlled using our clever Smart Home solutions. With our wide selection of sensors for the sun, wind and rain, you can be assured of a safe operation in perfect synch with your product. Always with you: Swiss quality.

Product

Options

1. Fabrics

Live better with beautiful fabrics

In addition to protecting from glaring sunlight, prying eyes and keeping the heat in or out, fabrics also diffuse the lighting in the room and are an integral part of the interior design. Everyone is sure to find a shade they like in our richly assorted fabric collection. Multi-coloured, solid colours or striped – the possibilities are endless.

All of Schenker Storen’s carefully selected fabrics have a long service life. We offer different qualities for our extendable blinds:

Acrylic
Fibreglass
Polyester (not for the AS 95 / AS 150)

These cover the various requirements such as light permeability, darkening or complete blackout. Explore our fabric collection and find the right fabric for your project.

2. Colours

Decoration and protection

You can match the colour of profile guides, panels and canopies with your window and facade. At Schenker Storen there is a whole variety of colours to cater for the individual colour scheme of your choice. Thanks to our in-house powder-coating system, we produce weather-resistant, scratchproof and dirt-repellent products and can therefore guarantee long-lasting colour fastness.
